IP66,TV1500W M45 4 Inch Vandal-proof Mini High Speed Dome Video Surveillance Cameras

IP66,TV1500W M45 4 Inch Vandal-proof Mini High Speed Dome Video Surveillance Cameras

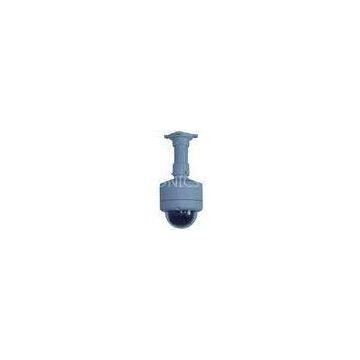

Production Name: M45 4 Inch Vandal-proof Mini High Speed Dome Camera

Feature:

* 256 presets, 8 patterns, 8 tours, 8 auto scan

* Max. preset speed Pan: 320°/S, tilt 280°/S

* Manual Max. Pan: 160°/S, tilt 120°/S

* Baud Rate (RS485): 2400/4800/9600/19200bps

Introduction:

* Switch power, wide voltage: AC18-24V, DC12-24V( standard configuration: DC12V)

* Built-in 8 multi languages OSD menu with password operation;

* In embedded operation system, support online editing relative titles via PC or other terminal;

* Title can be displayed in 40 English alphabets each line;

* Compass function, set north as direction, showing each direction in screen when running;

* Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up);

* Memory storage after outage, the dome can resume the detection or state after turn on the power;

* Build-in video 4input/1output; support build-in alarm and alarm linkage recording, linkage capture;

* Time task: can start different function according time schedule preset, which help operators saving time;

* IP66 outdoor Built-in 3000V, vandal-proof, with all- weather protective cover;

* Support general protocols such as: Pelco-C, PELCO-D PELCO-P, SAE, AD, Vicon, VCL, Molynx, Diamond, Kalatel, Philips, Bi-phase and EAE etc.);

* Support RS485: Manchester code, BI-PHASE code, PELCO-C;

* Working humidity: -30℃ ~ + 65℃;

* Optional zoom: Sony10X CCD, Samsung: 10X, 12X CCD.

Parameter:
