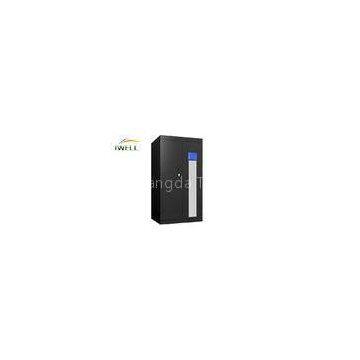

Industrial PWM IGBT 120 Kva Low Frequency Online UPS PF 0.8 I33E120K

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IWELL		Place of Origin	China
Model Number	I33E120K

Product Description

Delivery Time:7-10 working days
Certification:CE / FCC / ISO9001

I33E120K Online Industrial UPS 120Kva 3 Phase IGBT Technology PF 0.8 EPO LF UPS

Application:
Big Computer Data Center,Industrial Process And Other Miss-Critical Equipment

Main Function:
1. Double Conversion PWM (Pulse Width Modulation)
?? Inverter Technology And With Output Isolated
?? Transformer Built-In
2. Peak Current Protection,Easily Supply
3. Linear Load And Strongly Resist Cold Load Impact4.Output Short Circuit Protection And Generator Compatible
4. DC Starts Function
5. N+1 Or N+X Parallel Redundancy System
6. Independent Large Current Charger
7. User Friendly LCD/LED Display,Network Monitoring Management System

Input
Input voltage
Rated voltage	380VAC	Line voltage
Phase	3Ф + N + PE(protective earth)
Turn on voltage range	380VAC±25%	Line voltage
Bypass voltage range	220VAC±25%	Phase voltage； Could be adjusted by software.
Bypass low loss	165VAC
Bypass low comeback	Low loss +10VAC
Bypass high loss	275VAC
Bypass high comeback	High loss-10VAC
Line low loss/comeback	(165±5) VAC /(180±5) VAC
Line high loss/comeback	(275±5)VAC/(260±5)VAC
Input frequency
Rated frequency	50Hz	Could be adjusted by software.
Frequency low loss	(40~49)±0.2Hz(default:46Hz)
Frequency low comeback	Frequency low loss + 0.5Hz
Frequency high loss	(51~60)±0.2Hz(default:54Hz)
Frequency high comeback	Frequency high loss - 0.5Hz
Input power factor
Input power factor	0.7	220VAC,full R load
Generator	Support generator input	Generator rating≥2*UPS rating
Input current
Rated current	285A
Input protection
Rated protection	300A
Output
Output power
VA/watt	120kVA/96kW
Rated voltage	380VAC	Line voltage
Voltage range	200/208/220/230/240VAC(phase voltage)	Could be adjusted by software. 10% derating for 208VAC/200VAC.
Voltage regulation	±2%
Voltage distortion	≤8％	Full RCD load
≤3％	Full R load
DC offset	≤100mV
Transient response	≤9％	R load 0％～100％～0％
