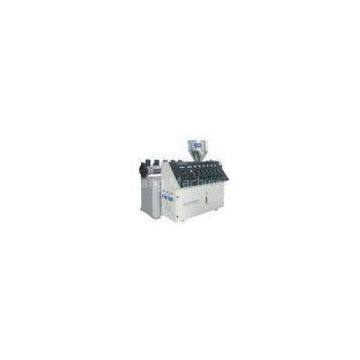

High Efficiency Single Screw Plastic Extruder Machine For PVC Extrusion Line

High Efficiency Single Screw Plastic Extruder Machine For PVC Extrusion Line
?

1．Special speed reducer, speed reduce ratio is 43:1.
2．Motor: Frequency conversion timing, 0.75-2.2 kW, power is up to customer\'s
?? ?requirements.

3．Material of the screw and barrel is 38CrMoAlA, nitrogen treatment, screw is designed especially for PVC.
4．Screw adopts frequency conversion timing, 0.75-2.2 kW,inverter brand of Fuji.
5．Cast-aluminum heating coil, barrel is fan cooling.
6．Stainless steel hopper, with side glass and flash board.
7．Extruder head is equipped with flange.
8．Electric control cabinet: Contactor is brand of Siemens, temperature
???? controller is brand of RKC(5 pcs), inverter is brand of Fuji, current meter and voltage meter aredigital? display type, electrical outlet(4 pcs).
9．Height could be adjusted up and down.


Applications:

The screw of this extruder adopts separation-type screw and mixing component. It is specially used to process the material, such as HDPE, PP, ABS, and so on..Single screw extruder can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .

Specifications:

Competitive?Advantage:
