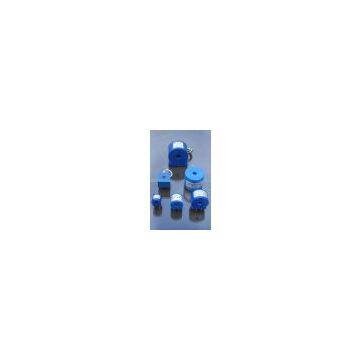

Zero-Flux Current Transformers Current Transformers
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
● Low cost
● Many standard sizes
● Single Turn Primary Winding
● Non-symmetrical mounting pattern
Applications
● For applications that require exceptional
accuracy with minimal phase angle error
● Applications would include Current, power and
energy monitoring devices.
Specifications
● Rated primary current:1A,5A,10A,20A,50A,100A
● Rated secondary current:1mA,2mA,2.5mA,5mA
10mA ,20mA ,50mA
● Rated Load Resistance:10,20,50 Ohms
● Frequency:50 to 400 Hz
● Accuracy Class:as defined in IEC 60044-1 Part
1 Current Transformers Class 0.01,0.02
● Operating Temperature:-40 to +85℃
● Isolation Current:2500 Vrms for 1 minute
● Dielectric Resistance:1000 M Ohms @ 500 Vdc
● Surge Withstand: 5000V
● Exterior Material:PBT Resin UL flame retardant
rating 94V-O
● Interior Insulation:Epoxy Encapsulated
● RoHS Compliant
