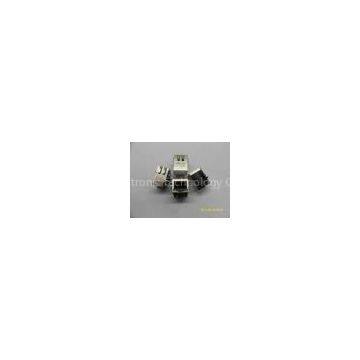

10M100M 1x1 Tab Down RJ45 Transformer Network Connector With Led and EMI
- T/T L/C D/P D/A
- 7 days
You May Like
-
10 / 100BASE 1 * 1 Tab Down Transformer RJ45 Network Connector With LED no EMI
-
10M 100M 1x1 Tab Down Transformer RJ45 Network Connector With Cylindrical Pin PA66
-
10 / 100M 1x1 Tab Down RJ45 Network Connector With Lan Transformer
-
Customized 10M 100M 1* 1 Tab Down Transformer RJ45 Network Connector
-
10M100M 1x1 Tab Down Transformer RJ45 Connector Front and Back Pin
-
Tab Down 10 / 100 BASE RJ45 Transformer Network Connector Front and Back Pin
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-060NL |
Product Description
Certification:SGS、UL、
10M100M 1x1 Tab Down RJ45 Transformer Network Connector with led and EMI
10/100BASE?1x1?Tab?Down?Transformer?RJ45?KRJ-060NL?with led and EMI, LED distance 4.06MM
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
|
1.1?RJ-45?connector?integrated?with?X\'FMR/??Impedance?Resistor/High? |
|
|
??????Voltage?Capacitor. |
|
|
1.2?Size?same?as?RJ-45?connector?to?save?PCB?board?space. |
|
|
1.3?Design?for?10/100base?transmission?over?UTP-5?CABLE.? |
|
|
1.4?Operating?temperature?range?is?0℃~70℃. |
Applications:
? Integrated RJ45 connector main used to :
? 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
Specifications:
.Insertion?Loss?:1-100MHZ?-1.0dBmax
.Rturn?Loss?:??1-30MHZ?-16.0dBmin
???????????????30-60MHZ?-14.0dBmin
???????????????60-80MHZ?-10.0dBmin
.Cross?Talk?:1-30MHZ?-40.0dBmin
??????????????30-60MHZ?-35.0dBmin
??????????????60-80MHZ?-30.0dBmin
.CMR:1-100MHZ?-35.0dBmin
.Hi-Pot:1500V?AC?6S?1mA
.Turn?Ratio?:1CT:1CT±3％
.OCL:350uH＠100KHZ?100Mv?8mA?DC
.Contacts:0.35mm?thick?phos?bronze?plated?with?6u’gold?in?contact?are?
.Housing?Material:PBT?Black
.Operating?temperature?rang?:0℃?to?+70℃
Competitive?Advantage:
Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?customer?firstly?,
100%?test,?0?defect,?short?lead?time?are?our?best?advantages
