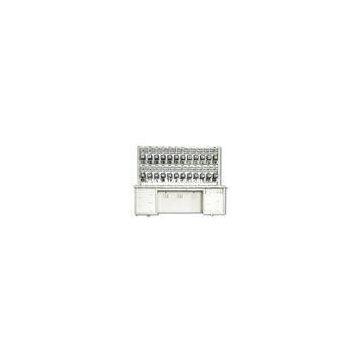

Active power and Reactive power Single-Phase Electric Energy Meter Test Bench System
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CENN | Place of Origin | China | |
Product Description
Certification:CCC, CE, RoHS, UL
YC1891D single phase electric energy meter test system?can measure single phase mechanical meter, electric mechanical meter and electronic meter by automatic, semi-automatic or Manual. The material is aluminum alloy, light and strong, prevent corrosion.
?
Function:
Starting test and creeping test Measuring the different constant meters synchronously. With the protect function of overload, short voltage circuit and open current circuit. The testing software with friendly Windows 2000 and XP interface, include functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test. ? The stored testing data can be transferred to multi-format for other program using
Character:
Technical?data:
|
YC1891D-6 |
YC1891D-12 |
YC1891D-24 |
YC1891D-48 |
|
|
Number?of?meter?positions |
6 |
12 |
24 |
48 |
|
Accuracy |
0.05 |
|||
|
Voltage |
||||
|
Test?voltage?output |
24V?–?288V?or?customized |
|||
|
Power?of?the?voltage?output |
100VA |
250VA |
500VA |
1000VA |
|
Resolution |
Better?than?0.01%?of?full?scale?value?of?range |
|||
|
Setting?accuracy |
Better?than?0.05%?at?the?final?range?value |
|||
|
Stability |
Better?than?0.005%/h?(integration?time?150?s) |
|||
|
Load?regulation?from?0-max.?load |
Better?than?0.01% |
|||
|
Distortion?factor |
Better?than?0.3%?for?linear?resistance?load |
|||
|
Harmonics |
2nd?–?21st?free?programmable |
|||
|
Current |
||||
|
Test?current?output |
1mA?–?100A??or?customized, Max.200A |
1mA?–?100A |
||
|
Power?of?the?current?output |
150VA |
350VA |
750VA |
1500VA |
|
Resolution |
Better?than?0.01%?of?full?scale?value?of?range |
|||
|
Setting?accuracy |
Better?than?0.05%?at?the?final?range?value |
|||
|
Stability |
Better?than?0.005%/h?(integration?time?150?s) |
|||
|
Load?regulation?from?0-max.?load |
Better?than?0.01% |
|||
|
Distortion?factor |
Better?than?0.3%?for?linear?resistance?load |
|||
|
Harmonics |
2nd?–?21st?free?programmable |
|||
|
Phase?angle |
||||
|
Range |
0?--?360° |
|||
|
Resolution |
0.01° |
