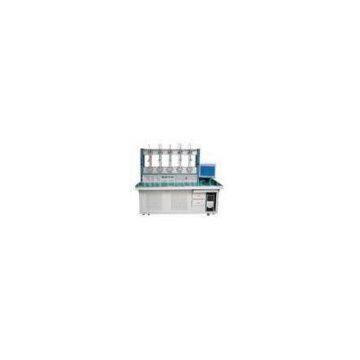

socket electricity energy meter test bench high accuracy

socket electricity energy meter test bench high accuracy

high accuracy?
stable performance?
socket meter?

three phase energy meter test bench

Three-phase portable energy meter test instrument ?with current and voltage source is an ideal device to test all kind three-phase energy meters accuracy below 0.2.? The equipment can generate 3-phase voltage , 3- phase current and any power factor signal ,the standard meter inside the equipment is class 0.05.

The equipment is box structure , light, and easy to carry ,it is very convenient to test meters on site, moreover the equipment can be used for testing meter in meter manufacture and as testing equipment in R&D institute.

ADVANTAGES

1.?????? Display of vector diagram for analysis of the supply conditions.

2.?????? DDS technology signal generator.

The signal generator adopts digital sine wave composing technology. The signal generator can trace voltage phase and supply a dummy load to? the tested meter by outputting adjustable current with different phase.

3.?????? High efficiency D-Class current amplifier and voltage amplifier.

The equipment adopts PWM power amplifier (or we called D-Class amplifier), which is high efficiency 9(?>85%??? )and very low heat consumption . the amplifier has protect function, it can avoid damage due to wrong connection or other manual operations. Current amplifier and output shifter can output different current. Voltage amplifier can output different voltage.

4.?????? Large LCD screen display

?MIAN TECHNICAL

1.?????? power and consumption

2.?????? power supply:1P2W? 220V/240V 10%. 50Hz or 60Hz:

3.?????? Max? consumption 300VA

4.?????? current source:

Output current :3×0.001A-3×100A

Adjusting resolution: 0.01%(min.0.0001A)

Power factor:0~3600? resolution:0.10

Output frequency :45Hz~65Hz

Distortion(sine wave output):?< 0.5%

Current stability of power source during sine wave output :0.05%(180s)

Output wave: sine wave

?? ????2-21 harmonic wave, total should be less than 40%

?????? Odd harmonic waveform

?????? Sub harmonic waveform

Output capacity:50VA per phase

5.?????? Voltage source:

Loading: the load can be resistor /inductive/ capacitive(? 4uF)

Adjusting resolution :0.01%(min.0.1V)

Output frequency :45Hz~65Hz

Distortion(sine wave output): <0.5%

Voltage stability of power source during sine wave output :0.05%(180s)

Output wave: sine wave

2-21 harmonic wave ,total should be less than 40%

Odd harmonic waveform

Sub harmonic waveform

?Output capacity:50VA per phase
