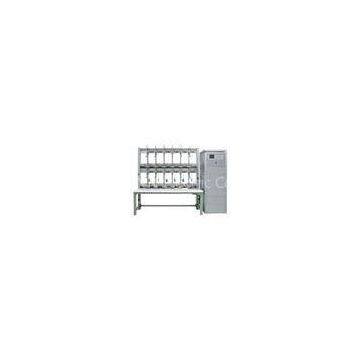

Electricity Power Three Phase Electric Energy Meter Test Bench System

YC1893D-6

YC1893D-12

YC1893D-24

YC1893D-48

Number?of?meter?positions

6

12

24

48

Accuracy

0.05

Voltage

Test?voltage?output?(Phase-Neutral)

3×(24V?–?288V)?(or?customized?)

Power?of?the?voltage?output

3×100VA

3×250VA

3×500VA

3×1000VA

Resolution

Better?than?0.01%?of?full?scale?value?of?range

Setting?accuracy

Better?than?0.05%?at?the?final?range?value

Stability

Better?than?0.005%/h?(integration?time?150?s)

Load?regulation?from?0-max.?load

Better?than?0.01%

Distortion?factor

Better?than?0.3%?for?linear?resistance?load

Harmonics

2nd?–?21st?free?programmable

Current

Test?current?output

3×(1mA?–?100A)?

Power?of?the?current?output

3×150VA

3×350VA

3×750VA

3×1500VA

Resolution

Better?than?0.01%?of?full?scale?value?of?range

Setting?accuracy

Better?than?0.05%?at?the?final?range?value

Stability

Better?than?0.005%/h?(integration?time?150?s)

Load?regulation?from?0-max.?load

Better?than?0.01%

Distortion?factor

Better?than?0.3%?for?linear?resistance?load

Harmonics

2nd?–?21st?free?programmable

Phase?angle

Range

0?--?360°

Resolution
