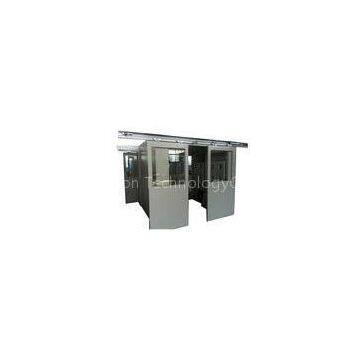

Hospital High Speed Dust Air Shower Tunnel Two Side Blowing 25m/s

Hospital Antibacterial Two Side Blowing Intelligent Air Shower Tunnel?With Rank 100

Quicky detail?

External Size: 1400x3000x2180mm

internal size:1000x2860x1910mm

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 6-50 person

SUS nozzle: 36pcs

Blower way: two side blower?

Air speed :>25m/s

Power: 380V/50HZ or 380V/60HZ

Introduction:

The greatest source of particulate contamination in a clean room is the operator air shower are installed between change areas and the clean room, the air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower, after you pass the air shower

Applications: it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.

operating features :

1 : ?PCL control system with LED display for the shower time.

2: ?the air shower duration time adjustable from 0-99second.

3: ?Infrared ray inductor for inside personal shower automatic from three side

4: ?Human being voice remind of user progress in chamber.

5: ?Emergency switch help you out of trouble, Comply with CE Test

Paramter :?

Factory test:?

All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a

documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)?

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.
