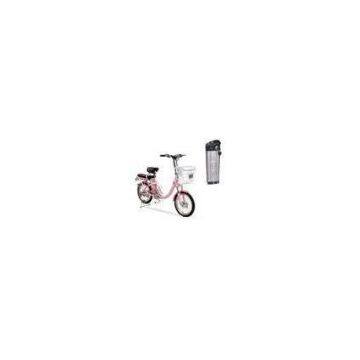

Customized Made 36V 10Ah Lifepo4 Battery Pack For Electric Bike

EV

Micro E-car, e-bikes, e-scooter, e-motorcycles, Road Sweeper, golf cart, electric wheelchair, startup car battery

UPS

Telecom Base station, Lighting, Small Doctor instruments,Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor

Power tools

Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools

Power storage system

Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system

Items

Characteristic parameters

Remark

Standard voltage

36V

Standard capacity

10Ah

0.2C5A discharge

Resistance

＜110mΩ

AC Imp

Standard charge current

0.2C (2A)

Max charge current

0.5C (5A)

Standard discharge current

1C

Max discharge current

2.5C

Over-current protection

YES

Dimensions

285mm*95mm*72mm

Weight

＜5Kg

Charge/discharge port

or

or

Charing mode(CC/CV)

standard

0.2C5A×6 hrs.(reference value)

fast

0.5C5A×2.5 hrs.(reference value)

Working temperature range

charge

0℃~+45℃

discharge

-20℃~+55℃

Storage Temperature Range

-40℃~+40℃

Storage environment humidity

5%～90% RH
