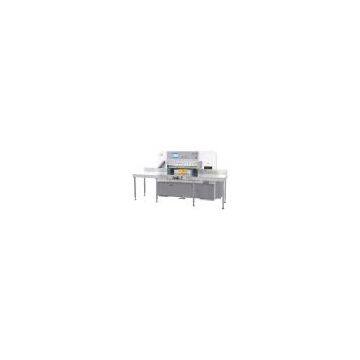

Computerized Paper Cutting Machine (Eutech-92CD/115CD/137CD) Guillotine

This machine adopts the technology of Europe and it has 10. 4" or 15" display screen designed novelly, the color of screen can be matched. Programming 10, 000 groups to assure the stability of performance.

The paper delivering section is driven by AC servo motor so that, the noise can be reduced and the working speed can be increased highly.
The paper feeding accuracy of paper location can reach 0. 001mm around.

Hydraulic pressure section adopts the rapid pressure increasing system to finish the pressure regulation.

The electric control system adopts Panosonic PLC, relilable characteristic, large capacity, it can store data for about 300, 000 hours and can upgrade to perform remote monitoring.

The low pressure control section adopts OMRON, LG, TOSHIBA, SCHNEIDER, BDI to make the control stably and efficient.
MODEL: CHM-92CD/115CD/137CD
MAIN SPECIFICATION:
Cutting width: 92cm/115cm/137cm
Paper feeding depth: 92cm/115cm/137cm
Master power: 3kw/4kw/4. 5kw
Min. Paper-weight pressure: 150dan
Max. Paper-weight pressure: 4000dan/4500dan/5500dan
Cutting accurancy: 0. 2mm tolerance.
Min. Cutting datumn 2. 5cm/2. 5cm/3. 0cm
Cutting speed: 45cuts/min
Voltage: 360-400V
