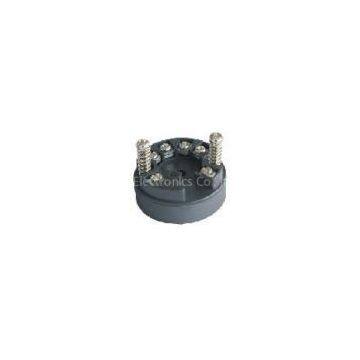

Sell Pors-TTRG RTD Transmitter
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Porstech | Place of Origin | China | |
| Model Number | Pors-TTRG |
Product Description
TTRG series RTD transmitter are used to receive Pt100 or Cu50 input, after transmission export standard DC 4-20mA signal.
Two wire 4-20mA output (power supply and signal share the two wire), output current is in linearity with the measured temperature. With Integration structure, the transmitters are generally assembled in standard terminal box of the temperature sensor.
◆ Features
Pt100 or Cu50 input;
Isolated two wire 4-20mA output;
With zero and span adjustor of the output signal;
High accuracy transmission, linear calibration;
Uniform apperance & structure, small volume, light;
Suitable to be assembled in terminal box of the sensor;
Also can be installed in instrument panel as signal converter independently;
Input/output is electromagnetic isolated;
◆ Technical parameters
Input
Temperature range: Pt100: -200~850℃
Cu50: -50~150℃
Min. span: 50℃
Lead wire resistance: ≤10Ω
Output
Current: 4-20mA
Power supply of output loop: 12~30VDC
Min. operating voltage: 12VDC
Properties between Load resistance and power supply:
Load resistance=(Power supply (V)-12(V))/0.02(A)
◆Performance
Standard accuracy: ±0.1% (please refer to ording info)
Temperature drift: basic error/10℃
RTD lead compensation: ±0.1% (0~10Ω)
Affect of Load change: ±0.1% (within range of allowance load)
Affect of power change: ±0.1%(12~30V)
Respose time: <1s (10~90%)
Setup time: <10 s
Operating temperature: -20~+70℃
Protective class: according to sensor
EMC: comply with IEC61000 and related requirements.
Outline size: Φ46×20 (mm)
Weight: around 30g
Isolated strength: 1.5kV, 1min, 50HzStandard accuracy: ±0.1% (please refer to ording info)
Temperature drift: basic error/10℃
RTD lead compensation: ±0.1% (0~10Ω)
Affect of Load change: ±0.1% (within range of allowance load)
Affect of power change: ±0.1%(12~30V)
Respose time: <1s (10~90%)
Setup time: <10 s
Operating temperature: -20~+70℃
Protective class: according to sensor
EMC: comply with IEC61000 and related requirements.
Outline size: Φ46×20 (mm)
Weight: around 30g
