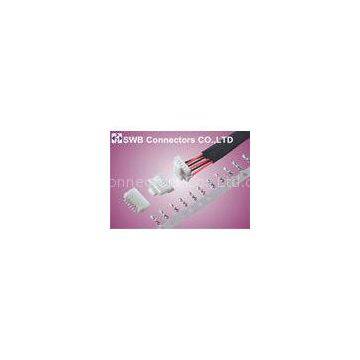

1mm Pitch (039") LED Light Bar Connector , Wire to board connector 15 pin
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wire to board LED Light Bar Connector 1mm Pitch for office equipments
-
Wire to board LED Light Bar Connector 1mm Pitch 20 pin for mobile devices
-
Female & Male LED Light Bar Connector 1.25mm , Wire to board Connector 10Pin
-
Home Appliance 4.2 mm Electronic Power Connectors , Single / Double Row
-
Straight / Right Angle Electronic Power Connectors 5.08mm for home appliance
-
Automobile Electronic Power Connectors 6.35mm Pitch , Straight / right angle
Product Details
| Brand Name | SWB | Place of Origin | China | |
| Model Number | 1002-B1 series |
Product Description
Certification:ISO9001/SGS/UL/RoHS/Reach
Wire to board LED Light Bar Connector 1.00mm Pitch for home appliances
Specifications:
|
Product Name |
Wire to board connector |
|
Product Series |
LED Light Bar Connector |
|
SWB Part Number |
1002-B1 series |
|
Gender |
Female&Male |
|
Pitch |
1.00mm |
|
No. of Rows |
Single |
|
No. of Contacts |
2~24 |
|
Orientation |
N/A |
|
Contact Material |
Bronze |
|
Contact Plating |
N/A |
|
Plastic Material |
PA?66 UL 94V-0 |
|
Plastic Color |
Natural |
|
Current Rating |
AWG#28-30 1A AC/DC; AWG#32 0.5A AC/DC |
|
Voltage Rating |
125V AC/DC |
|
OperatingTemp. Range |
-25℃~+85℃ |
|
Contact Resistance |
20mΩ Max |
|
Insulation Resistance |
100MΩ Min |
|
Withstanding Voltage |
500V AC/minute |
|
Wire Range |
AWG#28~32 |
?Competitive Advantages:
High Quality Prompt Delivery Cetification: ISO9001/SGS/UL/RoHS/Reach ReputationContact Us
