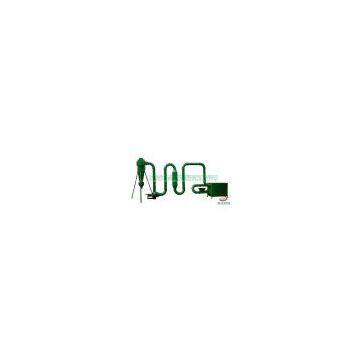

Sawdust dryer

For raw materials with heavy humidity which is above 12%, you need to install a dryer before further processing. This Air Current Type dryer can reduce the humidity of wood materials below 12% per time. The Cost of this Air Current dryer is much lower than Rotary dryer.

It is professionally designed for drying different kinds of wood sawdust. It has advantages of low cost, low consumption, high capacity, easy operation and maintainace, etc. In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.

Regarding YXS-I and YXS-II Type dryer (With one stove),it is suitable to process materials which moisture content between 20%-25%.It can reduce the MS to 8%-12% one drying time.

Regarding YXS-III (With two stoves),it is suitable to process materials which moisture content between 35%-50%.It can reduce the humidity to 8%-12% one drying time. That means it can reduce approx.30% for one drying time. But if the humidity of materials is lower than 35%, the capacity will be increased with less of fuel.

All of round places can be adjusted to any angle of 360 centigrade degree according to operation request. Clients can change the angle of dryers base on the production field.

Main technical parameters

Model                              YXS-I Type dryer with one stove

Capacity (Kg/hour)                                   200-300

Size of Input material (Diameter) mm       < 3 & < 5

Temperature of Hot Air                         180°C~250°C

Power (Kw)                                                  4

Gross/Net Weight (Kg)                            1300/1200

Overall Dimension (L*W*H) m                 10*1.0*2.0m

Packing Dimension (mm)                     2440*1220*2150
