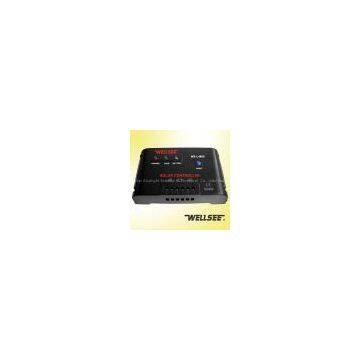

WS-L4860 60A 50A 40A lamp controller

WS-L4860 60A 50A 40A solar lamp controller

Brand : WELLSEE

Category : Solar Charging Controller for Lamps

Model : WS-L4860 60A 50A 40A

Weight : 1100g

Size : 210*125*50mm

WS-L4860 60A 50A 40AWellsee Solar lamp Controller

WS-L4860 60A 50A 40A(Solar Street lamp  Controller  Wellsee Solar Head Lamp Controller ) applies in solar photovoltaic lighting system below 2880W, which coordinates the working of solar panels, batteries and lamps, and is an important module to the whole system. With its virtues of one-tough process, convenient operation, excellent capability and reliable quality, it is a multifunctional and all-purpose solar controller special for various solar street lamps and indoor solar power system.

WS-L4860 60A 50A 40A Wellsee Solar lamp  Controller possesses the function of intelligent temperature compensation and efficient PWM battery charging mode, ensuring the storage battery to work at the best status of charging and discharging and to avoid "over-charging or over-discharging," thus greatly extend the battery lifetime.Different from other solar lamp controller, Wellsee Solar Lamp Controller adds overall protection, ensuring the whole solar photovoltaic system to operate with efficiency and safety.

WS-L4860 60A 50A 40A Wellsee Solar lamp Controller adopts micro-controller which can intelligently perceive the light intensity, thus it turns on automatically when it is dark and turns off automatically to the fixed time or dawn. The operation condition of the controller is easy checking with its accurate LED display, and adapts to cold, heat, humidity and other harsh environment. The environmental protection grade is IP55.

 Functions

1.It can prevent the battery from over-charging and over-discharging.

2.It can prevent reversed charging (the battery charges the solar panel).

3.It can prevent reverse connection of the battery and solar panel.

    4.It will start up the lighting system in the evening automatically according to the intensity of the light.

5.20 regular time modes and 10 sectional models can be set.

6.It has a LED indicator of the working condition of charging and discharging.

    One piece of Charge Indicator LED (mark: Charge). When it is bright, the battery is charged strongly; flickeringly means floating charge, no light means stop charging.

    One piece of Load Indicator LED (mark:load). When it is bright, there is output and load can work; if LED goes out, means there isn’t output and the load cannot work.

     Battery indicator: red under =voltage   Green =full    Yellow =normal

Technical Parameters:

We are special large scale R&D and manufactory enterprise of solar lamp controller and global supplier of Wellsee solar controller and photovoltaic system equipment. We also have passed ISO9001, CE and RoHS certifications. Wuhan Wellsee products can be designed and produced according to clients’ special request. Welcome to be our agents
