Home > Products > Auto Reset Circuit Breaker > Custom Auto Reset Circuit Breaker overload protection For RVs and marine systems

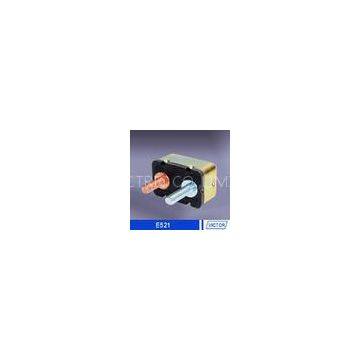

Custom Auto Reset Circuit Breaker overload protection For RVs and marine systems
USD $ 1 - $3
/ Kilogram
1 Kilogram(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
SAE J1117 12V Circuit Breaker Auto Car System Boat Line Fuse 40VDC
-
Single pole thermal trip Overload Circuit Breaker 24 Volt 20A 25A 30A
-
IP67 Boat Circuit Breaker , automatic reset circuit breaker 10amp 15amp 20amp 25amp
-
Single pole Thermoplastic Body Resettable Circuit Breaker 14V 24V DC
-
Meets SAE J553 BUSSMANN Circuit Breaker For Boating / inline circuit breaker
-
Snap action bimetallic thermostat for fuse , transformer 120AC 240AC 24VDC
Product Details
| Brand Name | VICTOR | Place of Origin | China | |
| Model Number | E521 |
Product Description
Certification:SGS UL
Stud Type Overload Circuit Breaker For RVs and marine systems
Description:
Terminal: A, B, C, D, E, H, J, K, L
Stud: 10-32\'\'(max.5A)
Quick Connector: 0.25\'\'(max.30A)
? 100% ? ? 150% ? 200% ? ? 300% ??
Less Than 25A >1800s <600s 5-40s 2-8s
Over 30A >1800s <600s 15-70s 4-12s
?
Spection:
| Spection | Single Poole Thermal Typer Breakers |
| Rating | 5-50A, 14VDC, 28VDC(For T2 and T3) |
| Interrupt Rating | 2.5KA @ 12VDC(T1& T1-28VDC, SEALED & T3) |
| Operating Temperature Rating | ?-40F(-40C) to 185F(85C) |
| Storage Temperature Rating | -40F(-40C) to 260F(125C) |
| Materials | Black UL rate thermoplastic body |
| Marking | Custom marking available. Consult factory for option |
| Terminal | #10-32 thread and quick-connector available |
| Torque rating | 24in-lb(2.7Nm) max |
Packing?Information:
Carton?packing
Gross?weight: 9KG
Carton?size:?30*29*23cm
