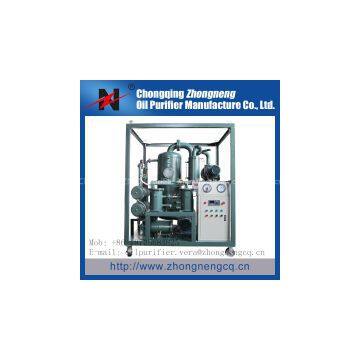

Vacuum Transformer Oil Purification Machine/Inaulating Oil Dehydration Plant

Inaulating Oil Dehydration Plant\" height=\"205\" width=\"245\"/>

Vacuum Transformer Oil Purification Machine/Inaulating Oil Dehydration Plant

Why choose us?

1. We are one of the largest manufacturers and exporters of oil purifier in China

2. We have more than 10 years experience

3. We offer our customers high quality products at competitive price

4. We offer our customers excellent after-sales service

5. We are not satisfied until our customers are satisfied!

Application

This machine is applied to treat various of unqualified insulation oils including aging transformer oil specially for

the power which is above 110V,mutual inductor oil, switch oil and so on. Also it can inject the insulating oil into the

transformers on-line. Regenerate the seriously deteriorated oil by removing the polarity materials.

Features

1.     PH of treated oil ≥5.5

2.     Acid≤0.03mgkoH/g

3.     Flash point≥145℃

4.     Anti-pressure≥60KV

5.     Dielectric loss: tgδ(90℃)%≤0.001

6.     High vacuum: High point-Vacuum≤5pa   Working-vacuum≤35pa

7.     High absorption speed: Absorption speed power≥333L/Sr.

8.     Duplex 3D stereo-evaporation, eliminating the liquid water quickly

9.     UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.

10.   Distinctive removing impurities system filtering through double FH trapezoidal network and absorbing by high polymer

without the mechanical power.

11.   Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after the treatment

12.   Specially applied to vacuum oiling and drying for power transmission equipments that are over 110KV

13.   The oil of any grades can be treated on line at the working site.

Advantages:

BesidesDouble-Stage High-Efficiency Vacuum Insulation Oil purifier’s function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid- alkali water-solubility.
