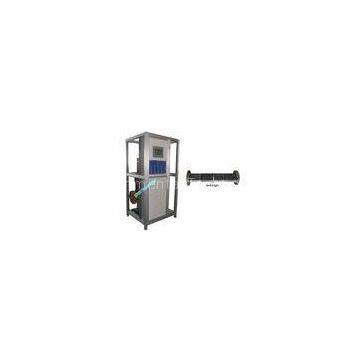

Multi Function Long Life Sodium Hypochlorite Production Plant in Large and Medium Size

Multi Function Long Life Sodium Hypochlorite Production Plant in Large and Medium Size

Principle:

? ? CNJY - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:

??the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Electrode reaction:

anode:2Cl--2e→Cl2

cathode:2H++2e→H2

Solution:2NaOH+Cl2→NaCl+NaClO+H2O

Technical parameters:

Product features:

> Inlet water temperature : -10 ℃ ～+50℃ ； ? ? ? ? > Inlet water pressure : 0.2-0.4Mpa；

> Salt consumption: 3.5kg/kg Cl2 ; ? ? ? ? ? ? ? ? ? ? ? ? ? ?> Water consumption : 125L/kg Cl2；

> electrolyte temperature rise :? ?<5 ℃ ；??

> Rated current: Determined according to the selected product model;

Work flow chart :

Automatic sodium hypochlorite generator system fully automatic production, contains the system

A,Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

C,Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

D,Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

E,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

F,Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output

Advantage of on-site sodium hypochlorite generator

Details :

? CNJY Technology :?Full framework of alumina , corrosion resistance,

Compressive strength , impact resistance

Never rust , design life for more
