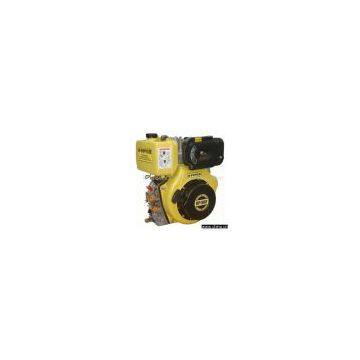

Air Cooled Diesel Engine

Place of Origin	China

Model: HP170F / HP170FEType: single cylinder, vertical, 4-stroke, air-cooled, direct injectionBore x stroke [mm (in)]: 70 x 55 (2.76 x 2.11)Displacement [L (cc)]: 0.211 (211)Compression ratio: 20Rated power [kW (Hp)/rpm]: 2.5 (3.4)/3,000, 2.8 (3.8)/3,600Rated speed (rpm): 3,000 / 3,600Starting system: F: recoil starter / FE: electric starterRotation direction (view from the wheel): clockwise, from handle start cover sideBalancing system: single, counter-rotating, balancer shaftFuel tank capacity [L (US. gal)]: 2.5 (0.66)Lube capacity [L (US. gal)]: 0.75 (0.20)Fuel consumption [g (ml)/kWh]: 3,000rpm: 280 (383), 3,600rpm: 288 (394)Fuel: 0# (summer), -10# (winter) diesel oilLubrication oil: SAE10W30 (above CC grade)Overall dimension [mm (in)] (L x W x H): 380 x 335 x 415 (14.96 x 13.19 x 16.34Dry weight [kg (lbs)]: recoil starter type: 27 (59.4), electric starter type: 31(68)Model: HP178F / HP178FEType: single cylinder, vertical, 4-stroke, air-cooled, direct injectionBore x stroke [mm (in)]: 78 x 62 (3.07 x 2.44)Displacement [L (cc)]: 0.296 (296)Compression ratio: 20Rated power [kW (HP)/rpm]: 3.7 (5.0)/3,000, 4.0 (5.5)/3,600Rated speed (rpm): 3,000 / 3,600Starting system: F: recoil starter / FE: electric starterRotation direction (view from the wheel): clockwise, from handle start cover sideBalancing system: single, counter-rotating, balancer shaftFuel tank capacity [L (US. gal)]: 3.5 (0.92)Lube capacity [L (US. gal)]: 1.1 (0.29)Fuel consumption [g (ml)/kWh]: 3,000rpm: 276 (378), 3,600rpm: 285 (391)Fuel: 0# (summer), -10# (winter) diesel oilLubrication oil: SAE10W30 (above CC grade)Overall dimension [mm (in)] (L x W x H): 420 x 385 x 450 (16.54 x 15.16 x 17.72)Dry weight [kg (lbs)]: recoil starter type: 33 (72.6), electric starter type: 38(84)Model: HP186F / HP186FEType: single cylinder, vertical, 4-stroke, air-cooled, direct injectionBore x stroke [mm (in)]: 86 x 70 (3.39 x 2.24)Displacement [L (cc)]: 0.406 (406)Compression ratio: 19Rated power [kW (HP)/rpm]: 5.7 (7.8)/3,000, 6.3 (8.6)/3,600Rated speed (rpm): 3,000 / 3,600Starting system: F: recoil starter / FE: electric starterRotation direction (view from the wheel): clockwise, from handle start cover sideBalancing system: single, counter-rotating, balancer shaftFuel tank capacity [L (US. gal)]: 5.5 (1.45)Lube capacity [L (US. gal)]: 1.65 (0.44)Fuel consumption [g (ml)/kWh]: 3,000rpm: 275 (376), 3,600rpm: 281 (385)Fuel: 0# (summer), -10# (winter) diesel oilLubrication oil: SAE10W30 (above CC grade)Overall dimension [mm (in)] (L x W x H): 420 x 440 x 495 (16.54 x 17.32 x 19.49)Dry weight [kg (lbs)]: recoil starter type: 48 (105.6), electric starter type: 53(117)Model: HP186FA / HP186FAEType: single cylinder, vertical, 4-stroke, air-cooled, direct injectionBore x stroke [mm (in)]: 86 x 72 (3.39 x 2.83)Displacement [L (cc)]: 0.418 (418)Compression ratio: 19Rated power [kW (HP)/rpm]: 6.3 (8.6)/3,000, 6.8 (9.2)/3,600Rated speed (rpm): 3,000/3,600Starting system: F: recoil starter / FE: electric starterRotation direction (view from the wheel): clockwise, from handle start cover sideBalancing system: single, counter-rotating, balancer shaftFuel tank capacity [L (US. gal)]: 5.5 (1.45)Lube capacity [L (US. gal)]: 1.65 (0.44)Fuel consumption [g (ml)/kWh]: 3,000rpm: 275 (376), 3,600rpm: 281 (385)Fuel: 0# (summer), -10# (winter) diesel oilLubrication oil: SAE10W30 (above CC grade)Overall dimensions [mm (in)] (L x W x H): 420 x 440 x 495 (16.54 x 17.32 x 19.49)Dry weight [kg (lbs)]: recoil starter type: 48 (105.6), electric starter type: 53(117) producing area:China payment:T/T, L/C at sight supplying capacity:1,000pcs/month
