LC Fiber Optic Patch Cord , LC Loopback Patch Cord Singlemode & Multimode

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ODM Or SINDA OEM		Place of Origin	China
Model Number	lc loopback patch cord

Product Description

Delivery Time:5~10 days
Certification:ISO, ROHS

?
?

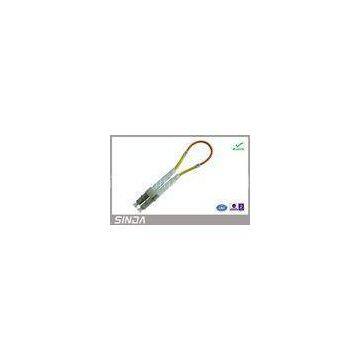

LC Fiber Optic Patch Cord , LC Loopback Patch Cord Singlemode & Multimode
?
?
?
Quick Detail:
?
?
Place of Origin: Guangdong China (Mainland)
Model Number: LC/PC Fiber optic Loopback with MM Cable
Type: LC /PC
Cable color: Orange
Boot color: Beige
Certificate: CE/ROSH/ISO9001
Cable Material: PVC or LSZH
Cable diameter: 0.9 mm/ 2.0mm / 3.0mm
Insertion Loss: ≤0.2dB
Repeatability: 0.2dB(1000times)
Operating Temperature: -40°C~+80°C
Mechanical resistance: 200-600g
?
?
Description:
?
?
1.PVC or LSZH Jacket
2.High temperature stability
3.RoHS,ISO:9001,REACH Certificate
4.Low insertion loss, High return loss
5.Good exchangeability and repeatability
6.Comply with Telcordia GR-326-CORE Specification
?
?
Applications:?
?
?
1.Device pig-tailling
2.Patch panel applications
3.Equipment interconnection
4.Communications connections
5.Loopback for network components testing
?
?
?
Specifications :
?
?

-	Singlemode	Multimode	OM3 10G
Connector Type	LC, SC, MT-RJ, MU, ESCON, FDDI, E2000
Cable type	Simplex cable
Jacket Color	Yellow	OR/GY/PP/BL	Aqua
?	?	BN/RD/PK/WH	?
Insertion Loss	≤0.1dB	≤0.2dB	≤0.2dB
Return Loss	≥50dB(UPC)	/	/
Exchangeability	≤0.2dB	≤0.2dB	≤0.2dB
Repeatability(500 matings)	≤0.1dB	≤0.1dB	≤0.1dB
Tensile Strength	≥5kg
Operating Temperature	-20~+70oC
Storage Temperature	-40~+70oC

?
?
?
?
Competitive advantages:
?
?

? ? ?Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.?

? All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

? We wish to create better future of optical communication industry jointly with both new and existing customers.
