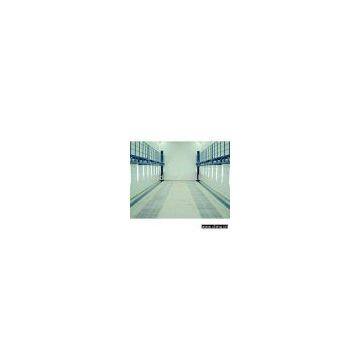

Sell Big Bus Spray Booth

Place of Origin	China

Model No.:BD1530-15150
Product Origin:China
Brand Name:BYDE
Price Terms:EXW, FOB, CFR
Payment Terms:T/T, L/C
Certification:ISO9001, CE
Description:Features: 1) Booth design: a) Booth panel wall thickness: 75mm b) The panels are made of steel and plastic. The parts have injected fillings of heat insulation foam materials in the middle section, which provides better heat retention and sound proofing ability c) The booth ceiling panels are made of rigid folded electro-galvanized steel plates frame. All the panel joints are lined with aluminum strips which provide better sealing 2) The booth front entrance has three doors (foldable) and one safety exit / service door at the side. All doors are made by bending methods and the middle sections are reinforced with 1.5mm thick steel plates frame. During installation, M8 bolts and nuts are needed to fix-up. The sight glass has oblong shape 3) Air intake system (2 sets): it has one unit (15" x 15") rotary fan couple with a 7.5kW motor drive unit. The heat exchanger is made of stainless material, which has thickness of 1.5mm and features more heat dissipating surface, better heat exchange and better burner efficiency. The burner is an Italian made brand "RIELLO" model 40-G10 and the air valve uses "BELIMO" electronic control unit 4) Air exhausts system (2 sets): consists of 2 filters and one unit (15" x 15") rotary fan couple with 7.5kW motor drive unit 5) To meet the Environment Protection Agency requirements, the followings will be used: a) Activated carbon filter system, which will provide better filtering of harmful exhaust gas from burner and gases from paint solvents that meets the EPA standards b) Water filter system, which will effectively remove air borne paint and dust c) With the combination of the two systems incorporated, the discharged air will meets the national EPA standard 6) Lighting system: at both (left and right) corners of the booth ceiling, there are 18 sets of 45 degree mounted lightings. Each set consist of 3 pieces of 40W lamps. At the middle section of booth (left and right) side panels, there are 12 sets of lightings. Each set consist of 2 pieces of 40W lamps. Finally, at the mid-section of the rear end of the booth, it has 3 sets of super bright lights 7) Ceiling filter system: it has wool type filters which filter out 99% dust, which ensures that the air entering the booth interior is virtually dust free. The filter frames precisely fabricated to ensure better sealing and easy filter replacement 8) Booth flooring system: it consists of 2 rows of extra heavy duty steel grid covers and below it lay the filters which filters the out going air that exhaust out to the exhaust fan 9) Control system: auto temperature control and auto-shut off after completion 10) Spray lift platform system (2 sets): easy to spray and operate Specifications: 1) External dimensions: (L) 15,150 x (W) 6,900 x (H) 5,400mm 2) Interior dimensions: (L) 15,000 x (W) 5,000 x (H) 4,800mm 3) Vehicle entrance dimensions: (W) 4,000 x (H) 4,800mm 4) Blower capacity: 40,000 + 40,000m3/h 5) Booth interior air speed: 0.4m/s 6) Operating temperature: 60 ~ 80oC 7) Diesel fuel consumption: 25 ~ 30L/h 8) Raising temperature: 5 ~ 15oC 9) Power consumption: 30kW 10) Noise level: <120dba 11) Suitable vehicle types: bus and truck
