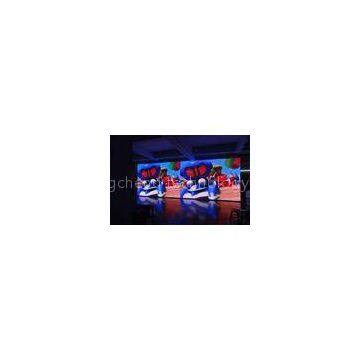

Dynamic display P10 full color indoor advertising led display for stadium

Brand Name	ZCLED		Place of Origin	China
Model Number	ZCLED-I-F-P10

Delivery Time:15-25 days after receiving deposit
Certification:CE,ROHS, FCC,CCC

?
Dynamic display P10 full color indoor advertising led display for stadium
?

Quick Detail:

1. 130 mm thickness.

2. At least 2 years\' warranty for entire screen.

3. on-site professional service.

4. hotline service, fast response.

5. adequate spare parts supply.

6. regular maintenance service.

7. technical support on upgrades and replacement.

Application:

Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.

1. Video display for advertisement

2. Live broadcast for news, sport, concert…

3. Dynamic display for logo, text, video

4. Information display for time, schedule, text

5. Stage background

Function and Technology Character:?

1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.

2. Information source can be camera, video, VCD, DVD, LD, TV and so on.

3. One interface for sound signal and two for video signal at least.

4. Multiform language editions, such as English, French, Germany, Greek, Russian and so on

5. Connected and controlled by PC via Lan and remote control.

6. Super correcting technology for distortion.

7. Clear picture without flicker and distortion.

8. Show everything with your PC does synchronously.

9. Brightness, contrast, saturation can be adjust by itself and manual.

Advantage of our factory:

Fully automatic machine production, can ensure the consistency of the LED, the tin point is uniform and full, can greatly avoid the cold solder, false solder, dead solder. So that to guarantee the color consistency and the stability of the display. Fully automatic machine production, also greatly reduce the cost of the labors, reduce our cost of production, so our price is much competitive. Constantly update and application of advanced technology. Full color display is our main product, fix install and rental business for advertising, concert, performance and so on. Synchronous and asynchronous system. Base on client’s requirement. We have new design 3G control system display, with GSM system, can be remote control, one can control more. If clients want. New cabinet design,weight light and convenient.?

Specifications :

Model No.:ZCLED-I-F-P10
Pixel Pitch	10mm
Module dimension	320mm*160mm
Density	10,000 dots/sqm
Brightness (calibrating value)	2000nits
View Angle (min, 50% brightness)	H≥140°? V≥90°
Viewing distance	10～200m
Brightness Control	100 levels
Grey Scale	1024
Frame Frequency	≥60Hz
Refresh Rate	≥1200Hz
Drive Type	Constant current drive
Scan Type	1/8
Input Voltage	AC 220/110V±15%
Average Power Consumption(W/㎡)	200W/ ㎡
Max Power Consumption(W/㎡)	600W/ ㎡
Color Temperature	6500 deg. k
Malfunction dot rate	≤0.0001
MTBF	5000hs
Module Brightness Uniformity	≤4%
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPOSITON.
Control system	LINSN Synchronous Control System
Software	LED Studio
System Operation Platform	WINDOWS 98,2000,XP,7,Vista etc.
Protection Level	IP65
Earth Leakage Current	<1.5mA
Operating Temper
