unattached payment terminal

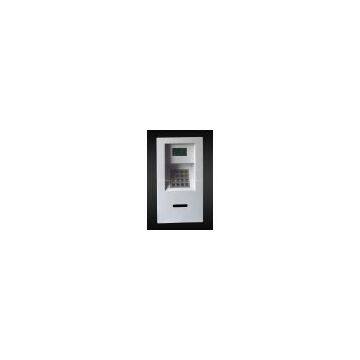

Unattended Payment Terminal (Integrated LCD display & Encrypted PIN Pad & Card reader), Passed EMV L2 certificate.

LCD display
Display the Chinese/English Customer-Tips.
Encrypted PIN Pad
Pass the certification of PCI2.0, Pass the certification of China Central Bank card testing center, CE, RoHS, FCC

Main function:
1. Input keypad: 10 numeric keys, 6 function keys.
2. Secure PIN entry and secure mechanism, prevent any combination of the attack, ensure the save of the secure information.
3. Security encryption key management
4. High performance secure management
5. Has strong WOSA driver supported, so it can be applied to different ATMs/ Kiosks.

Communication Interface:
RS232 or USB interface (including the data transmit line and power supply line)
RS232: RJ45 according to RS232-D up to 19200 baud
USB: Connector emulates RS232 port, free driver available.

Card reader

Passed EMVL1 and EMVL2 certificate.
Motor card reader/writer of Magnetic/IC/RF card equipments, with function of “Motor front /rear insert/ejection.”

Main features:
1. 3 in one: IC card, magnetic card and RF card read/write, the three features can be used alone or simultaneously;
2. Auto card insertion/ejection: Auto insertion, card in, out or captured can be controlled;
3. Multiplied card transportation: Insert and eject the card from both front and rear side, card move in the reader, clear up the disabled card.
4. Two kind bezel option: Mechanical and electric shutter option;
5. Options: The special eject card subassembly; Power off protect; DC 24V to 12V transfer board; PSAM board;
6. Multi-functions: Deal with abnormal cards, power off, special maintains occasions
7. Multi-communication Protocols: Compatible with several other brand products protocols;
8. Durability: Each component with over 500,000 cycles durability;
9.Customized service
