ISO Motorized RFID Smart Magnetic Card Reader For Traffic Control Systems DC12Volt

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CRT		Place of Origin	China
Model Number	CRT-310N

Certification:EMV

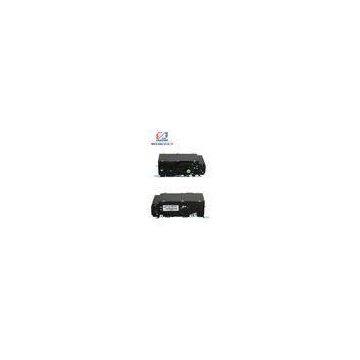

ISO Motorized RFID Smart Magnetic Card Reader For Traffic Control Systems? DC12Volt

Description:

Motorized card reader CRT-310-N with below main features:

★?Three in one: RFID/IC card read/write, magnetic stripe card read only

Electric shutter,

★?Auto insert/eject card from the front,Insert and eject the card from both the front and the rear side

★?RS232 interface

★?DC12V ±5%

★?Installation dimension and bezel dimension is fully compatible with 3K7

★?Clearance of abnormal card

★?Fault tolerance processing is the same as some other brands

★?Small-size controllable electric shutter

★?Support warped card mechanism design

★?Power-fail protection

★?PSAM board for option

Applications:

Kiosk terminals

Payment systems

Traffic control systems

ATM

Specifications:

Card standard	Magnetic Card: ISO7810 ID-1,ISO7811 IC Card: ISO7816-2 RF Card: ISO14443 TYPE A＆B
Life time	Magnetic head: 600,000? passes IC card contact:300,000 passes Motor: 1,000,000 passes
Communication	RS232 interface
Power supply	DC12V±5%
Current consumption	Static Current: ＜150 mA Peak Current: <1500 mA
Temperature/Humidity	Operation:0~50℃/0 ~ 90%?RH(Non condensing) Storage:-25~70℃/0 ~ 90%?RH(Non condensing)
Dimension (LxWxH)	96.5x167x51.5mm
Weight	Approx 530g

Quick Detail:

CRT-310N is motorized card reader equipment which is by the way of “Auto insert/eject card, 3 in one”.

Competitive Advantage:

Small-size controllable electric shutter

Support warped card mechanism design

Power-fail protection

Long life 1,000,000 times for transportation

Installation dimension and bezel dimension are compatible with 3K7

Fault tolerance processing

Support IAP online download
