Home > Products > Diesel Engine Generator Set > 5KVA Super Quiet Single Phase Diesel Generator For Home Use , Three Loops

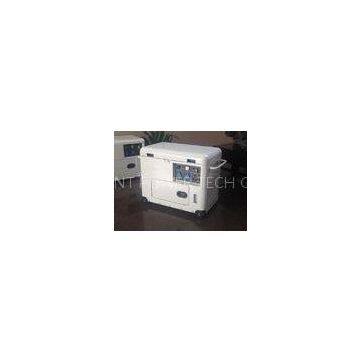

5KVA Super Quiet Single Phase Diesel Generator For Home Use , Three Loops
- T/T L/C D/P D/A
- 7 days
You May Like
-
Four Stroke Direct Injection Diesel Electric Generator CE Approved
-
Air Cooled Mobile Diesel Engine Generator Set / Diesel Power Generators For Home
-
Soundproof Quiet Diesel Engine Generator Set for Bank , Hospital , Train Station
-
6KVA Three Phase Air Cooled Compact Diesel Generator with Powerful Engine
-
Cummins K38 Series Diesel Engine Generator Set 750KVA - 1000KVA
-
Four Wheel Garden Wheelbarrows with B&S Engine 750 / Power Assist Wheelbarrow
Product Details
| Brand Name | KONSTANT | Place of Origin | China | |
| Model Number | KTDG7000T |
Product Description
Certification:CE
5KVA Super Quiet Single Phase Diesel Generator For Home Use , Three Loops
|
MODEL |
KTDG7000T? |
||
|
Rated frequency? (Hz) |
50 |
60 |
|
|
Rated output? (KVA) |
4.5 |
5.0 |
|
|
Max. Output? (KVA) |
5.0 |
5.5 |
|
|
Rated Voltage? (V) |
115/230 |
120/240 |
|
|
Rated current? (A) |
39.2/19.6 |
41.7/20.8 |
|
|
Rated rotation speed? (rpm) |
3000 |
3600 |
|
|
Phase NO. |
Single phase, three loops |
||
|
Power factor |
1.0 |
||
|
Insulation Grade |
B |
||
|
Pole number |
2 |
||
|
Excitation mode |
Self-excitation and constant voltage(AVR) |
||
|
Panel Type |
General Panel |
||
|
Output |
Voltage? (V) |
115/230 |
120/240 |
|
Receptacle |
Two receptacles |
||
|
Connection pole |
Without |
||
|
DC12V output |
DC receptacle output??????? |
||
|
Overall dimension: L*W*H? (mm) |
950*560*750 |
||
|
Dry weight? (Kg) |
165 |
||
|
Working assorting weight? (Kg) |
170 |
||
|
Noise level(7m)? dB(A) |
72 |
||
|
Structure type |
Silent |
||
|
Engine Model |
KT186FA |
||
|
Engine Type |
vertical, four-stroke, direct injection |
||
|
Cylinder NO.-bore×stroke? (mm) |
1-86x72 |
||
|
Displacement |
418 |
Description:
Diesel?generator 5KVA
CE approved
Powered by 186FA diesel engine
Reliable quality for long life diesel generator
Circuit breaker protects overload operation
Low oil shut down protection system
One year warranty with free spare parts
Competitive Advantages:
1.?Guarantee for one year or 1000hours (according to whichever reaches first) from?ex-factory date
2. During the gurantee period, our company will provide the free easy-damaged spare parts or problems caused by quality of production or raw material.?
3. After expiration,our company provides cost spare-parts maintenance for engines
