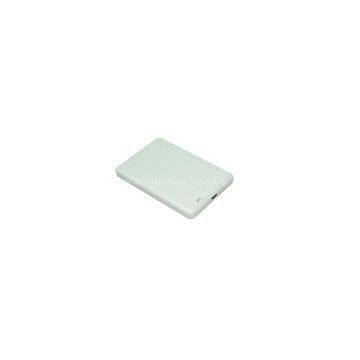

UHF Desktop Reader

GENERAL DESCRIPTION

RRU9809USB-Lis a high performance UHF RFID Reader. It is designed upon fullyself-intellectual property. Based on proprietary efficient digital signal processingalgorithm, it supports fast tag read/write operation with high identificationrate. It can be widely applied in many RFID application systems such aslogistics, access control, attendance system, anti-counterfeit and industrialproduction process control system.

FEATURES

l       Self-intellectual property;

l       Support ISO18000-6C(EPCC1G2) , ISO18000-6Bprotocol tag;

l       860~868MHz, 902~928MHz frequency band(frequencycustomization optional);

l       FHSS or Fix Frequency transmission;

l       RF output power up to 13dbm(adjustable);

l       No external power source needed;

l       Built-in antenna with effect distance up to 200mm^*;

l       Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;

l       Slim outline;

l       Provide SDK and demo software to facilitate furtherdevelopment.

* Effective distance depends on protocol, tag andenvironment.
