HF Multi-Protocol Desktop Tag Reader

GENERALDESCRIPTION

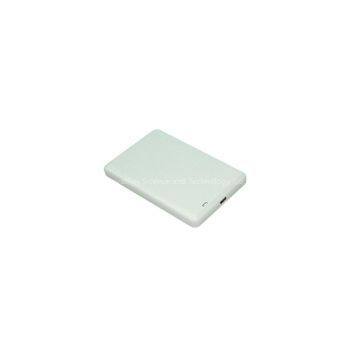

RoyalRay RR7066USB-L is a high performance HF Multi-Protocol Desktop tagreader. It supports ISO/IEC15693 Mode1&3,ISO14443TypeA&TypeB protocol. RR7066USB-L isdesigned upon fully self-intellectual property and supports fast tag read/writeoperation with high identification rate. It can be widely applied in many RFIDapplication systems such as logistics, personnel identification, conferenceattendance system, access control, anti-counterfeit and industrial productionprocess control system.

FEATURES

l       Self-intellectual property;

l       Support mainstream ISO/IEC15693Mode 1&3, ISO14443TypeA&TypeB protocol tag (TI, NXP, ST, INFINEON,FUJITSU, EM…);

l       Advanced tag processing algorithm,high identification rate;

l       SupportTransparent Command operation^①, support mainstream contactless CPU card/tag;

l       Built-inTX/RX antenna with effective distance up to 100mm ^*;

l       USB 1.1 interface. Low power dissipation design, no external power source needed;

l       Provide USB driver, DLL anddemonstration software to facilitate development.

*Effectivedistance depends on tag and working environment.

REMARK: Transparent CommandOperation: It is an advanced feature designed to support tag’s future functionsand different chip vendors’ customized tag functions.
