Home > Products > Stone Engraving Machine > JK-6015 CNC Engraving Machine for Marble

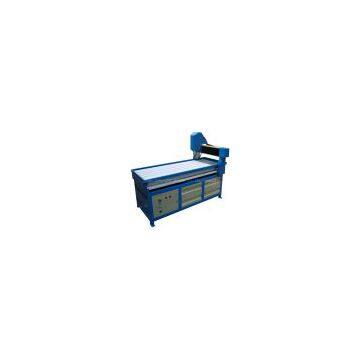

JK-6015 CNC Engraving Machine for Marble

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jingke		Place of Origin	China
Model Number	JK-6015

JK-6015 CNC Engraving Machine for Marble:

Usage: can be used to engrave and cut various materials.

Machine features forJK-6015 CNC Engraving Machine for Marble:

1).Particular style, competent for elaborate engraving and cutting.

2).2.2KW water-cooled spindle motor.

3).The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.

4).Be compatible with type 3, Artcut, Artcam software.

5).Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.

Technical parameter:

Modle	JK-6015
Work dimensions	600×1500mm
Body dimensions	800×1700×1200mm
Z-zxis working area	>100mm
Max.Feeding height	100mm or bigger
Cut thickness of material	≤30mm
Max.Speed	6000mm/min
Working speed	0-4000mm/min
Mechanical precision	0.01mm
Softwar	type3,Artcut,Artcam software
Max.Power consumption	1800W
Power source	AC 220V/50Hz
Driver type	stepper motor
Spindle	1500W variable speed,water-cooled
Spindle speed	0-24,000rpm
Blade diameter	1-6mm
Control system	NCSTUDIO
Command	HPGL.G code,u00,mmg,plt
