Home > Products > Universal AC Power Adapter > UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED

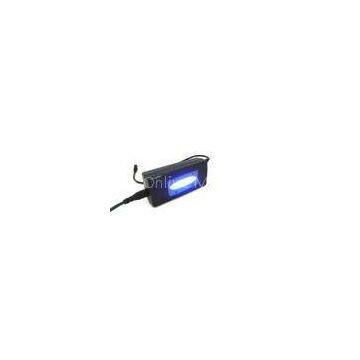

UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Health Management Women and Men Smart Bluetooth Bracelet Android 4.3 with G-sensor
-
3 - 8W Triac Dimmable LED Driver Constant Current 350mA With Short Circuit Protection
-
15, 17, 19, 22 Inch Interactive Information Acess Kiosk For Motion Sensor ,Air Conditioner
-
High efficiency AC DC Switching Power Supply Adapter with EMI performance For Laptops
-
45W KSAS045 Series Light Switching Power Adapters with 5-24VDC 1.88-5A for Printer,Hard disk drive,S
-
75 Watt Traic Dimmable LED Driver 12Vdc 50 / 60Hz IP20 No Noise
Product Details
Brand Name | RAYTOP | Place of Origin | China | |
Model Number | ETL1600400C |
Product Description
Certification:CE, RoHS, FCC
UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
Quick Detail:
Universal laptop adapter 90W, automatic voltage DC 15-20V, with 1x USB port, 5V, 2.1A. The adapter has unique design come with LED luminous epoxy on the top cover. Customer logo will be added in the center of the LED ring to promote the brand image.
Specs:
Input: AC100-240V, 1.8A max.
Output: DC15/16/18/18.5/19/20V
Power Cord:
AC Cable: 2x0.75mm2, length: 1.2M
DC Cable: 18AWG, Copper, length: 1.2M
AC Plug: EU, UK, US, SAA, CCC
Features:
- Worldwide input voltage 100~240Vac;
- High efficiency, up to 88%;
- Exclusive model, attractive appearance.
- Protection: Short circuit protection, over voltage protection, over current protection.
- 10 different output connectors for top brands laptops.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors
Description: ?
This is an universal laptop AC Adapter come with unique design and 10 exchangeable and automatic tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. This adapter have automatic output voltage 15/16/18/18.5/19/20. Also it has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.
Note: please select correct output voltage before connecting the adapter with your laptops.
Applications:
External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices simultaneously like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on? when using your laptops.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.8A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC 15~20V |
Output Voltage |
DC15/16/18/18.5/19/20V |
|
Rated Output Current |
4.5A |
|
USB Output |
5V 1.0A + 5V 2.1A |
|
Rated Power |
90W |
|
Ripple and Noise |
120mV p-p |
|
Standby Power Consumption |
0.5W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
