Home > Products > CNC Milling Machine > JK-3640 engraving machine for metal

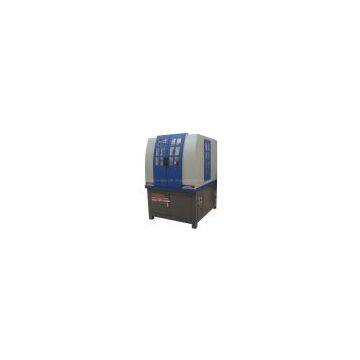

JK-3640 engraving machine for metal
- 50 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | JingKe | Place of Origin | China | |
| Model Number | JK-3640 |
Product Description
JK-3640 engraving machine for metal
Features
Main application professional:The water trough engraving machines are designed for glass,ceramic tile ,ceramics,45th steel plate,aluminum board,iron,copper and aluminum sheets and so on.
1) Matches with the German double nut an dball bearing guide screw.
2) Adopts straight line guide rail.The load-bearing surface with straight line guide rail is a surface contact and the life is 2200 times longer than ordinary rails.Its precision keeps high even with long time use.
3) Uses high speed driver motor.Its speed is enhance nearly 2meters higher than original type
4) X axis uses the popular dustproof structure.which guarantee long term performance characteristic
5) Memory to insure the processing point when the blade is broken or postpone situation
6) With good compatibility.This machine can work with many programs such as
Type3/artcut/artcam/castmate/proE/Coreldraw/CAD/CAM.The machine can do fine relief 2D,3Dproducts.
|
Model |
JK-3640 |
|
Machine body |
Whole cast iron |
|
Work dimensions |
360*400mm |
|
Body dimensions |
800*780*1500mm |
|
Z-axis working area |
200mm |
|
Cut thickness of material |
<=40mm |
|
Max.speed |
6000mm/min |
|
Working speed |
0-4000mm/min |
|
Mechanical precision |
0.01mm |
|
Software |
Artcut/Type3/Artcam |
|
Max.Power consumption |
1800w |
|
Power source |
AC220V/50HZ |
|
Driver type |
servo motor |
|
Spindle |
2.2kw water-cooling |
|
Spindle speed |
0-24000rpm |
|
Blade diameter |
1-6mm |
|
Control system |
Weihong/DSP |
|
Command |
HPGL,G code,u00*,mmg,plt |
Guarantee and After-sale service:
1 year guarantee
24hour’s technical support and e-mail or calling
Use the English manual friendly and can refer to the Video CD for to know the machine using and maintaining
