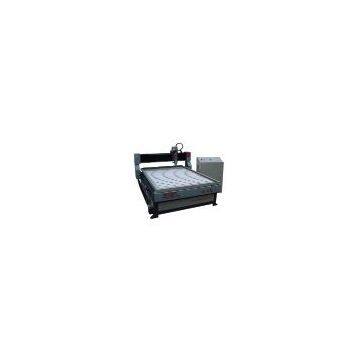

Stone CNC Router
Detailed Product Description
Stone CNC Router is used to engrave marble,granite,headstone.
DSP control, stepper drive, precision ball screw, square guide
Stone CNC Router JK-1215
Main application profession: The engraving machines are professionally used to engrave marble,granite,limestone,sandstone and so on hard material.The machine can engrave letters and relief designs.
1.Matches with the German double nut and ball bearing guide screw.
2.Adopts straight line guide rail. The load-bearing surface with straight line guide rail is a surface contact and the life is 2200 times longer than ordinary rails. Its precision keeps high even with long time use.
3.Uses high speed drive motor. Its speed is enhanced nearly 2 meters higher than original type.
4.X axis uses the popular dustproof structure, which guarantee long-term performance characteristic.
5.Memory to insure the processing point when the blade is broken or postpone situation.
With good compatibility. This machine can work with many programs,such as,Type3/artcam/castmate/proe/Corelerow/CAD/CAM.The machine can do fine relief,2D and 3D products.
6.Big power water cooled frequency spindle motor,which can ensure to work on hard material.
Technical parameter:
MODLE
|
JK-1215 |
Work dimensions | 1200 x 1500 x 80mm |
Body dimensions | 1500 x 1900 x 1500mm |
X/Y/Z movement | Precision ball screw/Germany |
Guide | Linear square guide/Taiwan |
Z-axis working area | 80mm |
Max. Feeding height | 120mm or bigger |
Cut thickness of material | 40mm |
Max. Speed | 6000mm/min |
Working speed | 0 - 4000mm/min |
Mechanical precision | 0.01mm |
Software | Artcam, Artcut, Type3 software |
Max. Power consumption | 1800W |
Power source | AC 220/50Hz |
Driver type | stepper motor |
Spindle | 2.2KW variable speed, water-cooled |
Spindle speed | 0 - 24,000rpm |
Blade diameter | ER20 1 - 6mm |
Control system | DSP |
Command |
HPGL,G code, u00, mmg, plt
|
