Home > Products > Ampoule Packing Machine > Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoule

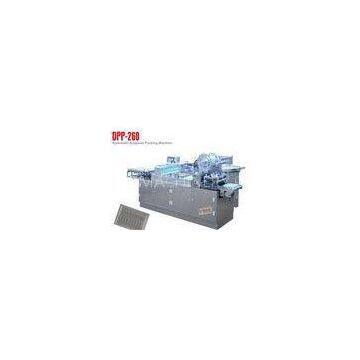

Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoule
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Cantilever Style Oral Liquid Blister Packaging Machinery for Vial , PLC Control
-
Small Single Punch Tablet Compression Machine for Chewable and Medicine Pills
-
ZP Type Small Rotary Tablet Press Machine , Pill CompressionMachine
-
ZP27 Auto Stainless Steel Tablet Press Machines for Chemical Industry , Foods
-
Stainless Steel 304 Rotary Tablet Press Machine Pharmaceutical Machinery
-
ALU ALU Package Line High Speed Blister Packing Machine For 80 Cutting Per Min
Product Details
| Brand Name | HUALE MACHINERY | Place of Origin | China | |
| Model Number | DPP-260 |
Product Description
Certification:CE/GMP Standard
Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoule
Specifications
|
It adopts hanging desig,easy to clean up the machine parts,with the requirements of GMP,this machine is widely used for syringe,vials,injection,ampoule blister packing . This machine Mainly used for packing ampoules into blister, suitable for different Ampoule size ,2ml,5ml,10ml |
||
|
Item?Model |
DPP-260 |
|
|
Punching?Frequency |
10-30?times/min |
|
|
Max.?Forming?Area?and?Depth |
250×180×30 |
|
|
Puling?length |
40-200 |
|
|
Packaging?material(I.D.Φ75) |
PVC(mm) |
(0.15-0.8)×260×(Φ400) |
|
PTP(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
PET(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
Power |
380V??50Hz??4.5k |
|
|
Air?compression(self-prepared) |
0.6-0.8Mpa≥0.5m3/min |
|
|
Recycle?water?or?circulating?water?consumption |
?40-80L/h |
|
|
Overall?Dimension(L*W*H) |
2750×750×1450(including?foundation) |
|
|
Dimension?of?Each?Part |
1450×750×1300 |
|
|
1300×750×1450 |
||
|
Weight |
About?700kg |
Description
Follows the GMP structures standared and adopts PLC touch screen interface control system. The main motor is equipped with a vaniable frequency speed controller and with servo-motor drive With Ampoule,vials spcial servo feeder and blister forming detection device With Safety Cover.Contact Us
