Home > Products > Outdoor UPS > High Performance Integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W

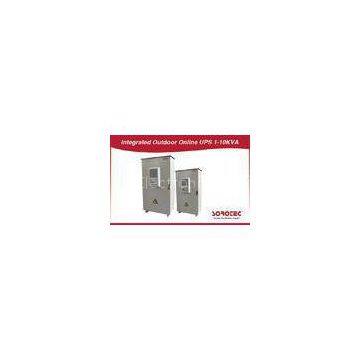

High Performance Integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low Frequency Online Industry UPS Series 10 - 200KVA With 8KW - 160KW 3Ph in / Out
-
6, 10, 20 KVA 7KW - 14KW 220 / 230 / 240V AC LED High Frequency Online UPS With 3 Phase
-
100 / 110 / 120 / 127 V AC 1 - 3 KVA High Frequency Online UPS With EPO / SNMP Card / CMC
-
700W - 2100W 1 - 3KVA 220V High Frequency Online UPS, Uninterruptable Power Supply
-
LCD RS232 SNMP Single Phase 60Hz High Frequency Online UPS 6 - 10kva For Computer, Telecom
-
High Frequency Online UPS 10, 15, 20 Kva 7000W - 14000W With 3 Phase in / Single Phase Out
Product Details
| Brand Name | SOROTEC | Place of Origin | China | |
| Model Number | HW9110E 1-10KVA |
Product Description
Certification:CE,ROHS,ISO9000
High performance integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W
Key Features:
Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
SORO Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.
Inner Structure of outdoor UPS HW9110E 1-10KVA:
| ? ? ? ? |
Applications:
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-40 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
Technical Specifications of Outdoor UPS HW9110E Series:
Model |
HW9110E? 1-10KVA |
||||
|
1KVA |
2KVA |
3KVA |
6KVA |
10KVA |
|
|
Capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
6KVA/4800W |
1000KVA/8000W |
|
Nominal voltage |
220/230/240VAC |
||||
|
Nominal frequency |
50/60HZ |
||||
|
Input |
|||||
|
Voltage Range |
115～295VAC(±3VAC) |
176～297VAC(±3VAC) |
|||
|
Frequency Range |
50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
||||
|
Power Factor |
0.98 |
||||
|
Output |
|||||
|
Voltage Precision |
220/230/240X (1±2%)VAC |
||||
|
Frequency Precision |
50/60HZ±0.05Hz |
||||
|
Power Factor |
0.7/0.8(optional) |
||||
|
Wave Distortion |
Linear load ＜3%??????? Non-linear load ＜6% |
||||
|
Overload capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
||||
|
Crest factor |
3:1 |
||||
|
Transfer Time |
0ms(AC to DC ) |
||||
|
Battery |
|||||
|
DC supply voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
|
Charge current |
4A/8A(optional) |
4A/8A(optional) |
4A/8A(optional) |
4.2A |
4.2A |
|
Internal battery capacity |
(38/65/80/100AH)optional |
||||
|
Panel display |
|||||
|
LCD |
Display input and output voltage, frequency, battery voltage, battery capacity, load percentage |
||||
|
Communications |
|||||
|
communicate interface |
RS232, SNMP card(optional) |
||||
|
Work environment |
|||||
|
Temperature |
0～40℃ |
||||
|
Humidity |
