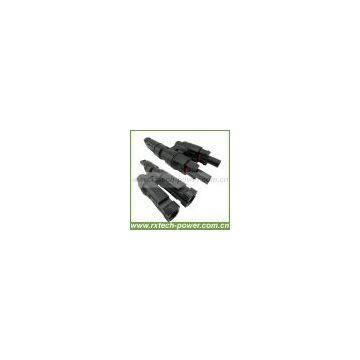

MC4T branch solar connector male-male-female&female-female-male,TUV approval, IP68, suitable for MC4 solar connector.
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | R&X | Place of Origin | China | |
| Model Number | R4-T |
Product Description
MC4T branch solar connector male-male-female&female-female-male,TUV approval, IP68, suitable for MC4 solar connector.
|
Rated Current |
22A(2.5mm2),30A(4mm2,6mm2) |
|
Withstanding Voltage |
1000V DC(TUV),600V(UL) |
|
Contact Resistance |
≤5mΩ |
|
Dia. of pin or socket |
4mm |
|
Protection Class |
Class II |
|
Temperature Range |
-40° C ~ +85°C |
|
Protection Degree |
IP2X,unmated;IP67,mated |
|
Wire Size Range |
2.5/4/6mm2(14AWG,12AWG,10AWG) |
|
Un mating Force |
200 Newton |
|
Insulation Material |
PC/PA |
|
Contact Material |
Copper,silver plated |
|
Flame Class |
UL94-V0 or UL94-5VA |
|
Locking system |
Snap in |
|
Drawing |
|
1. Photovoltaic branch for safe and simple parallel or series-parallel connection of PV-Module.
2. Due to highly robustness, UV resistance, the touch protection a high grade connection is guaranteed for many years.
3. Acc. To DIN V VED 012-3/12.6, UL1703 standard.
