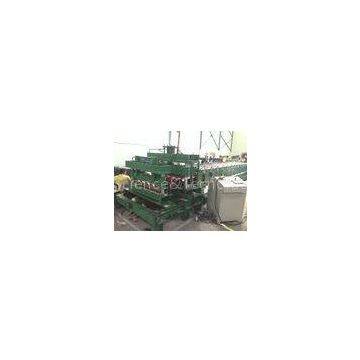

23-190-760 Multi Roof Panel Roll Forming Machine Roof Panel PPGI Steel

Descrition:

1. Dimensions:8000mm*1600mm*1300mm

2. Forming speed: about 18m/min

3. Raw Material Steel Coil: PPGI ,G350

4. Line speed:3m/min

5. Thickness of formed steel: about 0.19mm-0.5mm

6. The coil input width: 914mm

7.Step distance:300--380mm? mould depth:25mm

8. Forming stations: 13stations(1 feeding rolls for plastic film covering unit)

9. Main machine motor power: 5.5KW made in China

10. Material of the shaft: 45#forge steel , machined

? with numerical control, polished and coated with chrome,

? surface with 0.05mm

11. Diameter of shaft: ￠65mm

12. Way of drive:1\"chain

13. Hydraulic power: 3KW

14. Computer adopt PLC, Siemens or Panasonic made in Japan

15. Computer operating board: LCD touch screen

16. Length tolerance: 3m±1.5mm

17.Hydraulic pressure:10-12Mpa

18.Material of blade: Cr12 ,quenched 58-62

19.Pressing mold:press after forming,Cr12 material

Applications:

Roof panels,Roofing Tiles

Step roofing panels

Specifications:

Drawing:

Main Technical specifications:

Flowchart:

5 hydraulic decoiler---Guiding---Film covering--- Roll forming machine-- pressing----hydraulic cutting--- Output tables

Competitive Advantage:

1: We are a professional manufacturer of designing,producing the glazed tile forming machine

2: With top quality and reasonable price we build a long term business relations with some overseas companies

3: It has special pressing mould to process the steel thickness from 0.2mm up to 0.5mm without steel surface scratches and damages while pressing
