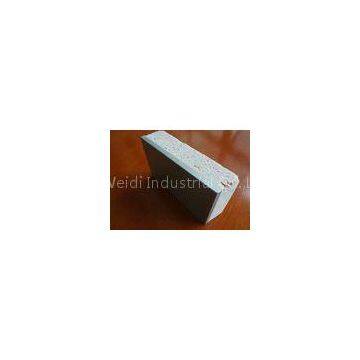

Custom Decorative Wall Insulation Board / Plate With Metal Fluorocarbon Coating / Multi Surface

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Wedi Decorative Insulation Board		Place of Origin	China
Model Number	WD-DI01

Delivery Time:10-15 days after receving Pre-payment
Certification:SGS / CE

Multi surface choose decorative wall insulation plate with metal flurocarbon coating

Weidi Decorative Insulation Board overall dimension specification

??????? Test Item	Detection standard and requirements	The third party test results
Dimensional Deviation	Length(mm)	GB/T7748-1999	±1.5	-1.0~0
Width(mm)	±1.5	-1.0~0.5
Thickness(mm)	±0.5	-0.2~0.1
Diagonal difference(mm)	≤2.0	0.5
No straight degree in Border(mm/)	≤2.0	0
Warping degree(mm/m)	≤3.0	0

Weidi Decorative Insulation Board final product facing layer performance

(varieties: solid color/metal/stone/wood grain/special effects, etc.)

Test Item	Detection standard and requirements	The third party test results
Coating thickness(μm)	GB/T13452.2-2008-10	≥30	199
Coating adhesion(MPa)	GB/T5210-2006	≥0.3	1.7(0.8-2.7),100%A
Hardness(Pencil)	GB/T6739-2006	≥4H	6H No scraping damage
Abrasive resistance(750g/500r), Suitable grinding wheel type:CS-10	GB/T1768-2006		0.003
Solvent resistance wiping(Butanone, 100times)	HC/T-3792-2005Appendix	No undercasing	Meet the requirement
Acid-resistance(5%HC1 liquor,24H)	GB/T9274-1998	No blistering,No Falling off,non-discolouring	No Change
Alkali resistance	GB/T9274-1998	No blistering,No Falling off,non-discolouring	No Change
Abrasion performance	HC/T3793-2005-4.1/4.3	≥5	12
Stain resistance	GB/T9757-2001Appendix A	≤5	5
Scrub resistance	GB/T9266-2009	≥10000	>10000
Oil resistant(Immerse in engine oil? SE15W-40 24H)	GB/T9274-198888	No blistering,No Falling off,non-discolouring	No Change
Alkali burnout resistance(72H)	JG/T210-2007		No abnormalities
Salting-out resistance(144H)	JG/T210-2007		No abnormalities
Weather resistance	GB/T1865-2009,GB/T1766-2008	Artificial climate ageing and radiation exposure	4000Hrs after testing,Dulling≤3Grade, Discoloration≤2Grade

Description:

Fluorocarbon?solid?paint?is?composed?fluorocarbon?resin,?pigments,?high?boiling?point?solvents?.?Metal?

fluorocarbon?paint?decorative?insulation?board?is?one?of?the?most?durable?material,?the?fluorine?carbon?

bonds?in?metal?fluorocarbon?can?resist?ultraviolet?degradation,?it?ican?be?used?for?a?long?time?outdoor?

with?the?perfect?surface?as?original.

Decoration?Veneer?Layer:Metal?fluorocarbon?painting

Carrying?Layer:Aluminium?plate;Calcium?silicate?board;Cement?pressure?plate;

Insulation?Layer
