Home > Products > Ultrasonic Thickness Gauge > High Accuracy Portable Coating thickness tester with Digital LCD

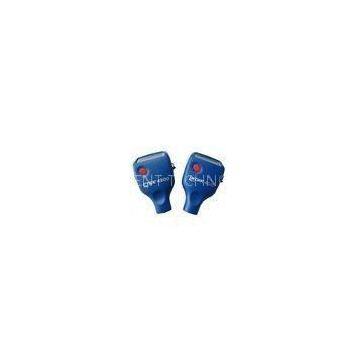

High Accuracy Portable Coating thickness tester with Digital LCD
Negotiable
1 (Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Accurate Bench Hardness Tester for Brinell Rockwell / Vickers Wide Measurement HBRVU-187.5
-
Coupling Indication Ultrasonic Thickness Ggauge 500m/sec - 9999m/sec Velocity Range
-
High accuracy Portable Metal Hardness Tester wireless probe LCD Display HARTIP2200
-
Pen Cast steel metal portablehardnesstester With OLED display Hartip1900
-
Handheld metal Hardness Tester For Rockwell Brinell Measuring HARTIP1500
-
AC 220V 50 / 60Hz HBS-3000 Digital Metal Brinell Hardness Tester 8 HBW ~ 650 HBW
Product Details
| Brand Name | SADT | Place of Origin | China | |
| Model Number | QNix4200 / QNix4500 |
Product Description
Certification:ＣＥ ＩＳＯ９００１
Portable Coating? Thickness Gauge?QNix4200 / QNix4500?High Accuracy with Digital LCD
The QuaNix?4200 and QuaNix?4500 have been designed to meet the requirements of automotive and other painting applications.
The QuaNix?4500 measures over all metalls by just switching the mode from ferrous to non-ferrous or reverse. For those of you who only measure over steel or iron we have designed the QuaNix?4200.
?
Product Features
Execellent accuracy
One button only
Proven Hall Sensor Technology (and
eddy-current for QuaNix?4500)
One hand opperation
for all applications
Integrated sensors
without cable and connectors
Automatic switch on/off
Display in microns or mils
Acoustical signal
confirms measurement
| Substrate Steel and iron | Fe-probe (4200/4500) |
| Non-magnetic Metals,e.g. Aluminium, Copper, Brass | NFe-probe (4500) |
| Measuring Range | 0 – 999 μm |
| Accuracy | (2 μm + 3 % *) (*of reading) |
| Minimum Measuring Area | 10 x 10 mm |
| Minimum Curvature | 5 mm convex 25 mm concave |
| Minimum Substrate Thickness | Fe: 0,2 mm NFe: 0,05 mm |
| Temperature Range | 0 – 60°C |
| Display | Digital (LCD) |
| Probe | One Point (integrated) |
| Power Supply | 2 x 1,5 V Mignon Battery (alkaline) |
| Dimensions | 100 mm x 60 mm x 27 mm |
| Weight | ca. 110 g |
| Technical Data subject to changes without priov | ? |
