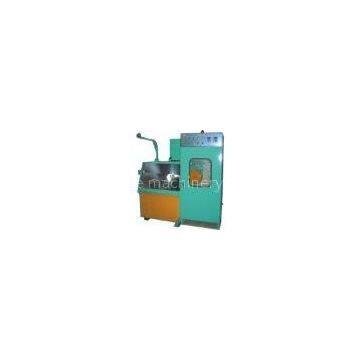

Fine wire drawing machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
|
Control system |
Fine wire drawing machine By computer digital control |
|
Inverter control |
Double inverters control |
|
Dies no . |
14 |
|
Input diameter |
Φ0.80-Φ1.60mm |
|
Output diameter |
Φ0.2-Φ0.60 mm |
|
Drawing line speed |
MAX.1500m/min |
|
Slip ratio of m/c |
15% |
|
Slip ratio of fix speed capstan |
8% |
|
Final slip ratio |
0%---2% |
|
Frame |
Welded by steel plate |
|
Capstan |
Tungsten |
|
Main motor |
15KW6P |
|
Take up motor |
5.5KW |
|
Capstan diameter |
Φ316mm |
|
Fix speed capstan diameter |
Φ268mm |
|
Spooler bobbin size |
MAX.Φ380 |
|
Take up type |
Shaft type |
|
Traversing type |
90W strap speed-down motor |
|
Transmission type |
Triangle belts |
|
Detecting device |
Weight balance by swimming arm |
|
Tension control |
Weight balance type |
|
Loading capacity |
50KG |
|
Lubrication type |
Spray type |
|
Brake |
Magnetic brake |
|
Lubrication type for bearing |
Without oil |
|
Power source |
380V50/60HZ |
|
Lubrication oil capacity |
40L/min |
|
Machine dimesion |
2000*1600*1900 |
|
Machine weight |
2200KG |
