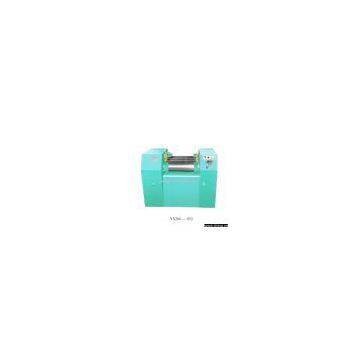

Sell YS Series Three Roll Mill/Grinder

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:This machine adopts a three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machine has feeding, discharging and the size of material is controlled by hydraulic pressure. It features high automatization content. It is convenient to operate use. Because the hydraulic system adopts a plate type structure, its arrangement is more reasonable. The roller is cast by special alloy. Its strength is high and its surface has high hardness. It has wearing resistance property. It is ideal equipment to grind high quality paste material. Main technical data: Roller diameter (mm): 150 Length of roller working surface (mm): 300 Roll rotating speed (rpm): Low speed roll: 26 Medium speed roll: 61 High speed roll: 141 Main motor power (kW): 3 Tptsl pressure of hydraulic system (MPa): 6.3 Pressure power (kW): 1.1 Machine weight (kg): 520 Overall dimensions (L x W x H) (mm): 910 x 800 x 1,018 Packing: Dimensions (L x W x H) (mm): 1,200 x 1,250 x 1,350
