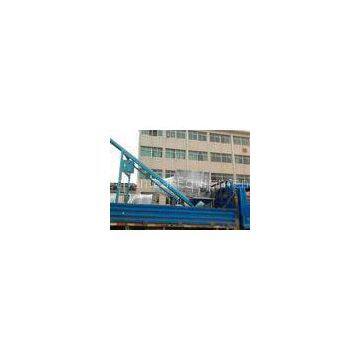

Stainless Steel Ribbon Blender Machine With Screw Conveyor Line

Stainless Steel Ribbon Blender Machine With Screw Conveyor Line

INTRODUCTION:

WLDH Stainless Steel Ribbon Blender is an efficient and versatile blending machine for mixing of dry powders, granules and viscous pastes homogeneously. It is able to give perfect result for mixing due to the innovative design of spiral agitator inside of its U-shape chamber.

In WLDH Stainless Steel Ribbon Blender, the powder or paste moves from center to the end of container and also from end to the center. In such a three-dimensional way, the total powder or paste is mixed within the chamber. It asks for a short mixing time and relatively low power consumption.

The unit consists of one electrical motor, one reduction gear, coupling, and shaft with spiral agitator. The shaft is sealed with bush & PTFE gland housing at both ends. Materials are loaded from top side, and the discharge is located at the bottom side in the center. The discharge height can be adjusted as per requirement, so that material gets discharged into the container below it without floating dust.

LSJ screw conveyor is conveyor equipment widely used. There are two kinds of screw conveyor
divided from conveying direction, one is horizontal screw conveyor, and another is vertical screw
conveyor. The conveyor is used for loose materials such as all kinds of powders, granules and
small blocks. The screw conveyor is made of steel. There is pipe inside of conveyor and paddles are
spirally welded on the pipe. The materials are passed and conveyed by rotary spiral paddles.

OPTIONS:

(1) Ribbon

We offer several types of spiral ribbon for different sizes and applications.

(2) Construction material

We are able to offer Ribbon Blenders with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Also we produce Ribbon Blenders all by stainless steel in order to meet the high hygienic requirement.

(3) Feeding & Discharging

A variety of feeding & discharging methods can be selected by the customers.

(4) Drive system

Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.

(5) Heating/Cooling jacket

Jacketed trough for heating/cooling operation

(6) Vacuum drying & deaerating

The mixer can be designed for vacuum drying & deaerating for special applications.

(7) Spray nozzle

Liquid can be added into the powder by spray nozzles on the top.

(8) Extended height bases

Height of our Ribbon Blender can be defined according to customer’s condition.

(9) Continuous operation

We can supply machines for continuous work when a large capacity per hour is needed for the same material.

Feature:

1.? Horizontal tube body, inner & outer dual screw with special structure, running stable, best?

???? quality, low noise, long life, convenient installation, widely usage, with many kind of mixer

???? structure, multiple functions.

2.? Whole machine except for motor is made of stainless steel.

3.? With warm sheet, bearing great pressure, make easy-forming material into difficult forming after

??? ?filling steam.

4.? For different mixing requirements, use different screw structure, rapid & thorough mixing.

5.? There is a split window in the body for cleaning.

6.? Load coefficient large, covering small surface.

Service:

According to different customer requirements, we can provide integral design and production as follows:

Consultation: We can offer plant designers, powder experts, mechanists, electricians and consultants in other industries based on good contact with customers;

Modernization: We can design and make automatic powder coating production lines for customers;

Maintenance: We can provide requirement and standard-oriented maintenance packages, such as inspection of spare parts and maintenance of gear boxes;

Training: We can provide all kinds of trainings, e.g. installation training, commissioning training and maintenance training.?

Why choose us?

JIANGYIN HALLO MECHANICAL EQUIPMENT CO.,LTD is a leading China manufacturer and exporter of all kind of mixing equipments. Hallo has first-class processing equipment and a number of excellent teams which services mixing equipment industry for many years. Hallo\'s employees generally have excellent technology, rich application experience, and can provide customers?from equipment selection?to the whole process of production services.

Sophisticated processing, excellent quality, good service,?excellent technology make sure that our mixing equipments have outstan
