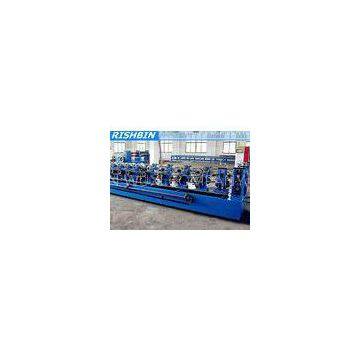

380V 3ph Carbon Steel C & Z Purlin Roof Roll Forming Machine 30KW

380V 3ph Carbon Steel C & Z Purlin Roof Roll Forming Machine 30KW

Quick Detail

Description

Components of the whole line?

1. decoiler?

2. pre-cutting?

3. forming device?

4. Run-out table?

5. PLC control?

Automatic C-Z purlin changeable machine components:
This whole line is consisted of de-coiler (mainly consists of un-coiler and its base), gearing rigging, roll stand and main machine, pressuring system, cutting equipment, hydraulic system, control system, and product supporter, PLC control system, etc.

Specifications of?Carbon Steel C & Z Purlin Roll Forming Machine

Applications

PURLINS, both C and Z, are available in various sizes rolled to any length. They can be ordered plain or with holes pre-punched, as per standard end punching shown below, or punched to any layout required. The standard maximum length for delivery of purlins is 12 meters. Greater length than 12 meters are obtainable but require special delivery vehicles.

Competitive Advantage

We can send the best solution and design different style C & Z Purlin roll forming machine according to client’s requirements, such as holes punched after profile roll formed, or pre- punched, etc. We can do a custom roll forming machine, i.e. we can design the machine according to your specification and profile drawing. Complex questions will be simple here.

Further details, pls contact with us!
