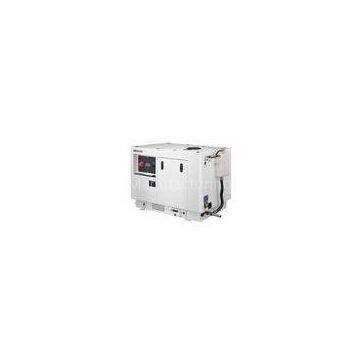

Silent 18KW - 20KW Portable Silent Marine Diesel Generator Single Phase 1500RPM
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Three Phase Four Wire Marine Generator Set Diesel Engine with Water Cooling 20KW / 24KW
-
6KW - 9KW Three Cylinder Diesel Engine Recreational Vehicle Generators Single Phase Small Size
-
AC / DC Recreational Vehicle Generators 3 Phase for LED Mobile Media Vehicle 6KW - 9KW
-
8KW - 11KW Custom Recreational Vehicle Generators by FOUR Cylinder 14KW Diesel Engine
-
Professional Vehicle Mounted Diesel Generator Set for 8KW - 11KW Super Silent
-
Truck Mounted 10KW - 12KW Mobile Power Recreational Vehicle Generators Single Phase Three Wire
Product Details
| Brand Name | OUMA | Place of Origin | China | |
| Model Number | OM18CYZ |
Product Description
Certification:ISO,CE
Silent 18KW - 20KW Portable Silent Marine Diesel Generator Single Phase 1500RPM
?
?Quick Detail:
?
Description:
?
Standard configuration of sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump.
External cooling of engine by sea water or river water.
60℃ radiator is used on all gensets so they can be used in all weather conditions2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
Complete display of main parameters and protections on the control panel.
Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.
Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
?
Specifications:
?
| Generator?Set | Model | OM18CYZ |
| Brand | OUMA? | |
| Rated?power(KW) | 18??????????20 | |
| Rated?voltage(V) | 115/230???????120/240 | |
| Rated?current(A) | 156/78.2??????166/83 | |
| Rated?frequency(Hz) | 50??????????????60 | |
| Waveform?distortion? | Sinewave,?distortion?≤5% | |
| Noise?level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall?dimension (L×W×H)(mm) |
≤?1430x700x800 | |
| Overall?weight(kg) | ≤680 | |
| Fuel?tank?capacity(L) | None | |
| Diesel?Engine | Model | OM495 |
| Brand | OUMA?? | |
| Power?output(KW) | 25??????30??? | |
| Type | 4?cylinder,?direct?injection,?four?stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 95×95 | |
| Rotation?speed(r/m) | 1500???1800 | |
| Governor?system | Mechanical | |
| Starting?mode | 12V?DC | |
| Filter?system | Dry?air?filter,?fuel?filter,?oil?filter | |
| Cooling?type | External?cycling?sea?water?or?river?water? | |
| Exhaust?muffler | Water?cooled | |
| Heat?exchanger(L) | 9 | |
| Sea?water?pump?suction(M) | 1 | |
| Sea?water?filter | Available | |
| Fuel?consumption(g/kw.h) | ≤220 | |
| Oil?capacity(L) | 8.3 | |
| Alternator | Model | OM183CZ |
| Brand | OUMA? | |
| Rated?power(KW) | 18??20 | |
| Excitation?mode | Brushless,?self-excitation? | |
| Voltage?regulation | Auto?regulation | |
| Number?of?phase | Single?phase,three?wire | |
| Number?of?pole | 4 | |
| Rotation?speed(R/M) | 1500????1800 | |
| Temperature?rise(℃) | 125 | |
| Insulation?grade(stator/rotor) | H/H? | |
| Voltage?regulation?range?w/o?load | ≥95%～105% | |
| Steady-state?voltage?deviation | Less?±1% | |
| Interference?factor | TIF＜50,THF＜2% | |
| IP?grade | IP22 | |
| Control?panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power?output | Terminal?post | |
| Installation | In-built?and?remote?cable?connected | |
| Remote?conrol?w/?cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto?function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter?display |
AC?voltage,?frequency,?running?hour,? |
?
