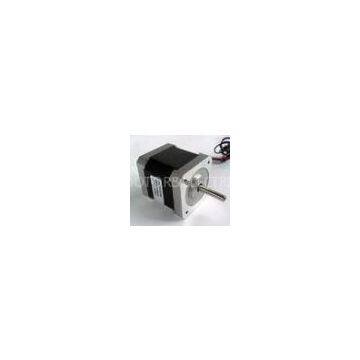

Small Nema 17 2 Phase Stepper Motor 42mm Square , 4 wire or 6 wire
- T/T L/C D/P D/A
- 7 days
You May Like
-
High speed CNC 2 phase stepper motor with high torque
-
6 Lead 2 Phase stepper motor 86mm NEMA 23 with brake
-
Bipolar / unipolar 2 phase stepper motor 86BYGH NEMA 34 with high speed
-
Waterproof unipolar 2 Phase Stepper Motors NEMA 34 , 8 leads
-
Small 2 Phase Stepper Motor NEMA8 , 1.8 20mm for Industrial
-
1.8 Degree 2phase hybrid stepper motor , NEMA11 28BYGH
Product Details
| Brand Name | JK | Place of Origin | China | |
| Model Number | JK42HS,42BYG |
Product Description
Certification:CE,ROHS ,ISO9001
Small Nema 17 2 Phase Step Motor 42mm Square , 4 wire or 6 wire
Nema 17 Hybrid Stepper Motor Model Number: JK42HS,42BYG Phase: 2 Phase Lead Wire (No.): 4 or 6 wire Structure: Hybrid Step Angle: 1.8° Motor Height: 42mm Rated Current: 0.96 -1.2A Holding Torque: 1.6Kg.cm - 6.5Kg.cm Function: Control Speed: Low / high speed Shape: Square ? Certification: CE, ROHS, ISO9001 Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.PREMIUM QUALITY / GOOD PRICE Nema 17 size 42mm Stepper Motor, CE & ROHS (more nema 08--nema 42 step motor & driver available)
Description:
1.8 degree Size 42mm Hybrid stepper motor.? 3D Printer stepper motor
42mm size stepper motor , NEMA17 stepping motor,
Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer?design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.
Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
kg.cm |
No. |
g.cm |
g.cm2 |
Kg |
|
|
JK42HS34-0956 |
1.8 |
34 |
0.95 |
4.2 |
2.5 |
1.6 |
6 |
120 |
34 |
0.22 |
|
JK42HS34-0406 |
1.8 |
34 |
0.4 |
24 |
15 |
1.6 |
6 |
120 |
34 |
0.22 |
|
JK42HS34-0316 |
1.8 |
34 |
0.31 |
38.5 |
21 |
1.6 |
6 |
120 |
34 |
0.22 |
|
JK42HS34-1334 |
1.8 |
34 |
1.33 |
2.1 |
2.5 |
2.2 |
4 |
120 |
34 |
0.22 |
|
JK42HS40-1206 |
1.8 |
40 |
1.2 |
3 |
