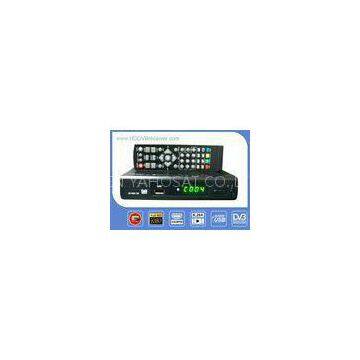

MPEG-1 , MPEG-2 ISDB Receiver Adopting MSD7805 With MXL603 Chipset

HD 1080P?MPEG 4 Digital ?ISDB?T?Receiver Support USB PVR

? HD ISDBT set top box compliant with MPEG2 and MPEG4 H.264

? Compatible with HDTV channels and equipped with HDMI connector

? USB2.0 port with PVR function and external HDD support

? MultiMedia playback MKV/AVI/MP4/TS/FLV/MP3/JPEG

? EPG & Teletext & Subtitles

? Multi Language OSD menu

? Conditional Access(CA) Verimatrix ,Irdeto, Conax ect.

Technical Specifications

Core System

? Processor Frequency:?880DMIPS

? Memory:?128MB Flash 128MB RAM DDR-2/DDR-3

? OS:??ECOS/LINUX

? Protocols:??Standard Multi standard video decode

?support:??MPEG2 MP@ML, MPEG2 MP@HL, MPEG4 AVC/H.264 HP@L4

? STB upgrade:??Through USB Disk or RS232

Video Decoding

? Resolution: Up to 1080p@30fps

? Supports HD MPEG2 (up to 1080p@30fps)

? Supports HD MPEG4 SP/ASP(up to 1080p@30fps)

? Supports file formats of RM and RMVB (Licensee Only)

? RealVideo 8/9/10, up to 720@30P(Licensee Only)

? DivX3/4/6 (Licensee Only)

? HD JPEG with unlimited resolution (40M-pixel tested)

Audio Decoding

? Audio Codec: MPEG-4 AAC5.1/AAC+Level2,?MPEG-1/2 layer I, II and III, WMA,?AC-3,Dolby Digital5.1, Dolby Digital+,?DTS (Licensee Only)

Connectivity

? Broadcast tuners: ISDBT

? Video: HDMI v1.3a RCA out (CVBS, YPbPr, Audio L,R) or TV Scart

? Audio:?Digital audio optical out(optional)

? USB:?1x USB 2.0 host device

Power

? Main power:?90-250V

? Power consumption:?MAX 9W

? In StandBy mode: <1W

Proposed Accessories

? Remote Control Unit

? RCA Connect Cable

? 2 * 7# Batteries(optional)

? HDMI cable length 1.5m (optional)
