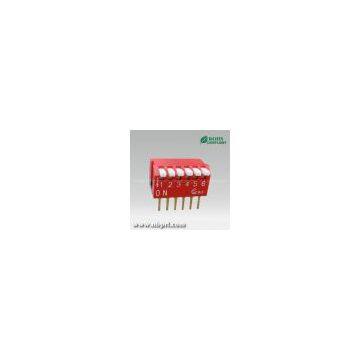

6 position piano type DIP switch

Brand Name	CWT		Place of Origin	China
Model Number	WT11-DP-06

Welcome to Ningbo Prime Electronic&Technology Co,. Ltd which is DIP Switch Manufacturer and Cabling System Manufacturer. The specifications: 2pos,3pos,4pos,5pos,6pos,7pos,8pos,10pos,12pos. MECHANICAL 1.Operation Force: 800g Max 2.Stroke: 2.00mm 3.Operation temp: -20degree~70degree 4.Storage Temp: -40degree to 85degree MATERIALS 1.BASE: Engineering plastics,Black. 2.COVER: Engineering plastics,Red or blue. 3.BUTTON: Engineering plastics,White. 4.TERMINAL: Alloy copper,Gold plating. ELECTRICAL 1.Electrical Life: 2000 operations cycles per switch. 2.Non-Switching Rating: 100mA,50VDC 3.Switching Rating: 25mA,24VDC 4.Contact Resistance: 50m Max,at initial;100m Max,after life test. 5.Insulation Resistance: 100m,500VDC 6.Dielectric Serength: 500VCD/1 minute 7.Capacitance: 5pF Max. 8.Circuit:Single pole single throw. SOLDERING AND CLEANING PROCESSES 1.Keep all switch contacts in their "OFF" position for all operation . 2.Wave Soldering: Recommended Solder Temperature at 260degree Max.5 seconds for IC type. 3.Hand Soldering: Use a soldering iron of 30 watts, controlled at 320degree approximately 2 seconds,while applying solder. 4.Cleaning Process: Flux clean using force rinse,high agitation or triple bath cleaning mathod. Freon TF or TE give excellent results.When vapor methods are used do not subject the switch to solvents at temperature above 51degree. PACKING All DIP switches are packed in standard IC tube. SMT type can be packed in Tape or Reel packing Our company manufacturer has developed itself of the designing, production and development of cabling products on logical network. At present, we have the production ability for following products: DIP Switches, Toggle Switches, Thumbwheel switches, Rotary Switches, SMT switch ,SMD Switches, Select Switch, Coding Switch, Coded Selector, Dial Switch, Combination Switch, Digital Switches ,Breaker, rotary dial switch, Piano-key Switches,Socket,plugs.Cat5e patch panel, distribution frame, 110 wiring block, Punch Down Tool, Crimping Tool, Faceplate, module, Connector. The ROHS are compliant. Company: Ningbo Prime Electronic&Technology Co,. Ltd. Contact: Mr Joshua Wu E-mail:sale@ccwt.cn MSN:sale@ccwt.cn skype:cxwtdz5 Tel: +86 0574-23618667 Fax: +86 0574-23711368 Post code: 315333 Location: Kuangyan Industrial Zone Cixi City Zhejiang Province High quality and high beneficial absolutely! If you are interested in our products you can know more detail information via our company website: Please contact us if you are interested our any products.
