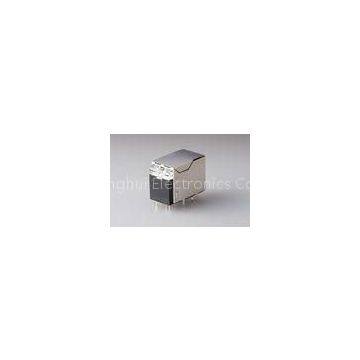

Silver Rj45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack

Rj45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack

Specifications

Material:?

1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.?
3. Plating: Contact Area-Selectine Gold Plating.?
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.?
5. LED: Option

Feature:?

1. Reduce EMI Radiation, Improve EMI Performance.?
2. Designed For Network Interface Card Application.?
3. Designed To Meet IEEE802.3u Requirement.?
4. Suitable for CAT 3, 5, 6 UTP cable or better

Electrical:

Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Mechanical:

1. Durability:750 CYCLES MIN

2. PCB Rentention pre-solder:1LB MIN

Environmental:

1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Opration Temperature 0°C~+70°C

Lead-free process,compliant RoHS?

Drawing?

Rj45 USB Connector Female Socket 8p8c Single Port Side Entry Modular Jack

(PHC)

Service
?
PHC?Offer?good?pre-sales?&?after-sales?service?&Strong?technical?support
?
1) New?Project:?Strong?technical?and?ideal?support?your?new?design
2) Existing?projects:?Try?to?help?customer?to?save?the?cost?to?offer?the?good?quality?product?and?save
3) time.?
4) Free?Samples:3-5?PCS?of?each?part?number
5) Shipping?Fee?:We?can?get?80%?off?from?DHL/UPS/TNT/FedEx,?keeping?safe?and?fast.
6) Customer?complaint:24-48?hours?reply?8D?report?
7) Warranty?:?24?months?(?Merchandise?are?promised?to?be?promptly?returned,?replacement,,or?repair?
8) kits?if?customers?are?not?satisfied)

Quality?:
?
World’s?Leader?supplier?of?Integrated?RJ45?Connector?and?PCB?connector??
?
Except?the?plating?,From?Design?tooling,?stamping?,Injection?molding,?assemble,?Testing?,?packing?.All?the?step?are

?doing?by?ourself.?So?we?can?control?the?quality.
?
1. Manufactured?under?strict?controls.
2. ISO?9001:2008
3. UL?Certification
4. Reach?Cetitifaction
5. RoHS?compliance
6. OEM??for?PULSE?
7. Active?Environmental?policy
8. Every?module??tested?3times??(not?just?batch?tested)

Patents Pending Products

Vertical Injection Molding Machine

Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? -------------??PHC ?Sales & Support Team?
