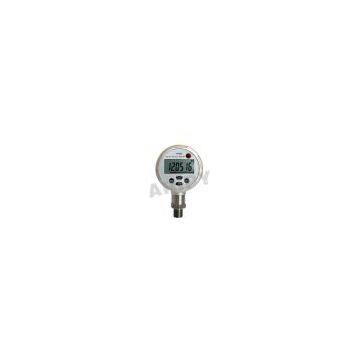

Pressure Recorder (PY502)

PY502 is a battery powered pressure recorder, with an LCD display. It is perfect for applications requiring display pressure readings. Available on-screen data includes: Statistics (max., min., average); Recording status (start, stop and recording rate), display options (channel, units, text size); Calibration information (data calibrated, data for recalibration). Statistics can be cleared at any time during logging. With 262143 readings, the PY502 has one of the largest memory capacities of any similar data recorder on the market. The non-volatile memory will retain recorded data, even if battery power is lost. Simply connect the interface cable to an available USB Port and, with a few clicks of the mouse, data is downloaded and ready for review and export to EXCEL.

Application:

Laboratory
Warehouse
Museum
HVAC application
Medical/Pharmaceutical
Environmental monitoring
Food standard monitoring
Food storage
Fresh and live goods transportation.

Features:

High accuracy, 0~50 ° C temperature compensation
Large DOT-matrix LCD display
Front panel keys for fast, easy operation
User-selectable measurement units
Real-time operation, high speed download
Programmable start/stop time
Status changeable
User replaceable batteries
Waterproof

Technical Specifications:

Response Time: 0.1ms
Start/Stop Time: Software programmable start time and date, up to six months in advance.
Memory Capacity: 262143 readings
Reading Rate: 1 reading every 2 seconds to 1 every 24 hours
Power: Three AA alkaline batteries or one 3.6V Lithium Battery
Battery Life: 1 year battery life at 1 minute reading rate with display off.
Engineering Units: KPa, MPa, mmH2O, mmHg, PSI, Tor, bar, mbar
Communication: RS232
Baud Rate: 115200
Software: WINDOWS95/98/ME/NT/2000/XP/VISTA BASED

Other Specification:

Dimension: Head Ø 115mm× 56mm, Overall Height 180mm
Weight: Approx. 0.6kg
Pressure Connection: M20× 1.5

Environmental:

Operating Range: (-20~70) ° C
Humidity: <95%
Atmosphere Pressure: (86~106) kPa
Storage Temp.: (-40~85) ° C

Software Features:

Graphs Display: Display pressure data graph
Real-time Recording: Real-time data acquisition and display during continuous recording
Cursor Tracking: One click displays readings by time, value, parameter or sample number
Data Table: Instantly access tabular view for detailed dates, times, values, and annotations
Scaling Options: Auto scale function fits data to the screen, or allows user to manually enter their own values
Formatting Options: Change colors, line style, plotting options, show or hide channels quickly.
Statistics: Calculate averages, min., max., standard deviation
Export Data: Export data in a variety of common formats, or switch to Excel with a single click
Logger Configuration: Easy set up and launch of data loggers with immediate or delayed start, preferred sample rate, and device ID
Communication: Automatically sets up communications port or lets user select configuration
Print: Print data table or graph automatically

Gauge pressure
-100KPa to 0
0 to 40KPa
0 to 60KPa
0 to 100KPa
0 to 160KPa
0 to 250KPa
0 to 400KPa
0 to 600KPa
0 to 1MPa
0 to 1.6MPa
0 to 2.5MPa
0 to 4MPa
0 to 6MPa
0 to 10MPa
0 to 16MPa
0 to 25MPa
0 to 40MPa
0 to 60MPa
0 to 100MPa
0 to 160MPa
0 to 250MPa

Compound pressure
0.05%FS ± 40KPa
0.05%FS ± 60KPa
0.05%FS ± 100KPa
0.05%FS (-100 to 160)KPa (-1 to 1.6)bar (-750 to 1200)mmHg
0.05%FS (-100 to 250)KPa (-1 to 2.5)bar (-750 to 1875)mmHg

Burst pressure:
Vacuum pressure burst pressure is 3 X, <100bar
0~60bar burst pressure is 3 X, <100bar
0~100ba^0~700bar burst pressure is 3 X, <1000bar
