Home > Products > LED track light > COB LED track lights 15W

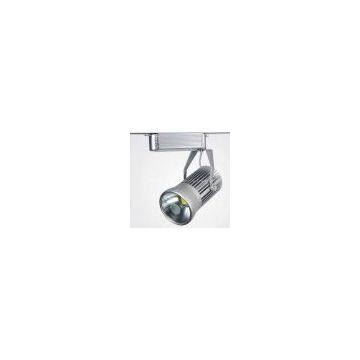

COB LED track lights 15W

FOB Price

US$ 38 - 38 / Piece

5 Pieces(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Auroras Lighting		Place of Origin	China
Model Number	AS-TKL15W

Product Description

Item: COB LED Down Light / LED COB Down Light, COB LED Ceiling Light

01): LED Type: COB LED

02): LED Brand: Bridgelux

03): Power: 20W 30W

04): Light efficient:>75lm/W

05): Color: warm white/natural white/cold white

06): CRI:>80

07): Power factor:>0.81

08): Beam angle: 24/30/45Degree

09): Working temp.:-30 degree~60degree

10): Voltage input: 85V~240V AC

Advantages:

1): Sufficient power can replace traditional light

2): Low temperature inside of light body.

3): Energy saving, low power consumptiona

4): Environmental protection, lead free and RoHS compliant.

5): Low heat, no IR & UV light radiation

6): Quick & Simple installation, it is an excellent replacement of conventional lamp.

Quality Control :

1,Standard anti-static and dust-free workshops;

2,Well-trained employees and advanced operating machines;

3,Finished products will be detected by detecting equipment;

4,Every product will be tested for 48 hrs,defect rate is 0.2-0.5 percent;

5,All series with top quality can meet CE,UL,FCC,RoHS and EMC demands.

Our Service :

1 ,Quick Response: Inquiry will be replied within 12 hrs.

2 ,Your private information will be well protected.

3 ,Well-trained & experienced staffs answer your enquires in fluent English.

4 ,Sample order is accepted.

5 ,Discount is offered for bulk order.

6 ,OEM is welcome. We can manufacture your customized lights.

7,Sales promontion are often during the year to help you to extend the business.

Trade Terms:

1,Payment: T/T,Western Union,L/C,Paypal;

2,Delivery Time: 3-7 days;

3,Shipping Port:Zhuhai;

4,MOQ: 20 pcs;

5,Your requested shipping methods are acceptable.

After-service:

We provide 2 years quality warranty.1 year of charge by the

factory.

We provide our exclusive agents & distributors 0.1%-0.3% free

spare parts to support your work,such as LEDs board,power

supply and finished products.

Package:

1pcs/box,12box/carton

EPE inside,paper outside

Usually we provide our own logo package, neutral packing and

OEM available per your request. OEM Min.Qty: 3000pcs.

Contract Manufacturing:

OEM Service Offered

Design Service Offered

Buyer Label Offered

Special COB advantage:

1. Soft light and low sight hazard. By using new COB LED light source, it is very good for human eyes due to the even lighting surface.

2. Long Life Span. Combine the advantage of COB LED package, our lamp have very good heat dissipation and its life span could reach more than 50000 hours.

3. Stable performance. Rational structure design and constant current driver ensure the products’ stable performance.

4. Environmental friendly. No hazard materials occur when lighting.

Outter Size: diameter: 195mm

Cut hole size: diameter: 160mm

Application:

1): Home /office lighting ,display case lighting

2): Under cabinet lighting

3): Art lighting

4): Recess lighting,shelf lighting

What is COB?

There are basically 3 LED configurations:

LEDs in cylindrical packages

SMD LEDs (Surface Mounted Device)

COB LEDs (Chip On Board)

COB, (Chips on Board) , multi LED chips are packaged together as one lighting module. When it light up, it looks like a lighting panel..

Why COB? --Background

LED(light emitting diode) is new technology with advantage of saving energy and very long lifespan. But all LED lightsource can not be faultless especially SMD, HP, flux LED etc. Compare to traditional lighting such as fluorescent lamp, as it is super bright in a small size, it cause uncomfortable glare. In case of no diffused optical lens used, such LEDs usually cause glare and zebra strips . But when optical lens or cover used, it will cause light loss when LED beam pass through this lens or cover.

How COB LED Light source works ?

COB LED is multi chips packaged, it can 10 times more increase lighting area, so it avoid uncomfortable glare by the maximum extent.

Auroras Lighting uses small size of chips to make COB LED package.

By now, for small size chip, ?some famous LED chip manufacturer can reach 249lm/watt @ 20mA. But big size LED chip can only reach 161lm/watt @350mA. The light efficacy decrease when chip size is bigger. Also when LED driver increase current to LED, the light efficacy per watt is even low.

The COB with small size chips will be a trend of LED light source package.

We holds the patent for invention for COB LED and lamp.

Advantage of COB?

1, less thermal resistance .

Among different LED components such as high power LED, SMD, dip etc, COB LED is the best in less thermal resistance and cooling.

For high power LED, the total Thermal Resistance are a. LED attach, b. Slug, c. Epoxy, d. PCB

Thermal Resistance: A+B+C+D

But for COB LED, are only . a. LED attach + d. PCB.

Thermal Resistance: A+D

So the COB LED is less thermal resistance, so the heat generated from LED chip can conduct outside quickly. Then assure the LED has long lifetime and high quality.

2, larger cooling area for LED chips.

3, Better light effect,No glare,protect eyes.

4, higher light efficacy.

Application of COB Technology

1, COB LED light sources

2, LED lighting fixture which use COB LED light source
