GXZZ Series Low Carbon Planetary Gear Reducer With Large Carrying Capacity
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Power Planetary Gear Reducer Low Noise For Rubber Machinery GXZZ Series
-
ZLYJ Series Bevel Wheel Gear Transmission Box For Plastic Extruding Machine
-
High Precision Circular Speed Reducer Gear Box For Rubber & Plastic Extruder
-
Stainless Steel Cylindrical Gear Reducer , Vertical Or Horizontal Industrial Gearbox
-
Horizontal Or Vertical Gear Box / Single Screw Spur Gear Reduction Box
-
Compact Modular Bevel Helical GMC Gearbox / Heavy Duty Speed Reducer
Product Details
Brand Name | MINGDI | Place of Origin | China | |
Model Number | GX Planetary Series |
Product Description
Certification:ISO, ROHS, CE

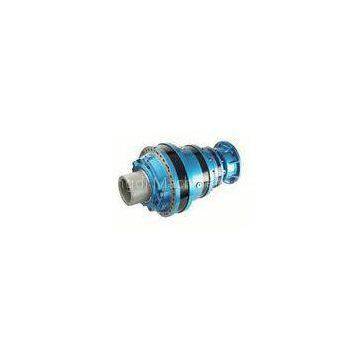

GXZZ series low carbon material for gears Planetary Gear Reducer with the color blue
GXZZ serial introduction:
? MINGDI Brand GXZZ Series Planetary Gear Reducer
?In this series there is many models and which with many kind speed ratio ,I have put the parameter in next form
contrast the form looking for your like and enquiry me .
MODEL | RATIO |
INPUT SPEED (Rpm) |
NORMAL POWER (KW) |
NORMAL OUTPUT? TORQUE(Nm) |
GX2NAZ9..36 |
25,28.31, 5.35,5.40 |
1500/1000/750 | ?43- 12934 ? ? | ?22000-2600000 |
GX2LAZ9..36 |
31.5/35.5/40/45/50 56/63/71/80/90/100 |
1500/1000/750 | ?17-2937 | 22000-1200000? |
GX2SAZ9..36 |
?45/50/56/63/71/80/90 100/112/125 |
1500/1000/750 | ?6-6050 | ?22000-2600000 |
GX2KAZ9..20 |
?112/125/140/160/180/200/225 250/280/320/360/400/450/500/560 |
1500/1000/750 | ?1.5-498 | ?22000-354000 |
GX3NAZ9..36 |
?140/160/180/200/225/250/280 |
1500/1000/750 | ?2.7-1953 | ?22000-1920000 |
GX3SAZ9..36 |
?280/315/355/400/450 500/560/630/710/800/900 |
1500/1000/750 | ?0.8-1480 | ?22000-1920000 |
GX3KAZ9..30 |
?560/630/710/800/900/1000/2/1120/1250/1400 1600/1800/2000/2240/2500/2800/3150/3550/4000 |
1500/1000/750 | ?0.4-342 | ?22000-1200000 |
Specifications:
1.?Compact?dimension,?light-weight?
2.?Large?carrying?capacity?
3.?Stable?operation,?low?noise?
4.?Reasonable?price
- Modular design enable standardization of many basic components, interchangeability improved and quality guaranteed;
-?Heavily loaded housing parts are made out of spheroidal graphite cast iron, all other parts are out of grey cast iron to improve the rigidity and shock resistance.?Other materials on request
- Reduced costs and weight due to high power density and finely graduated sizes,?effective cooling system if need
- Different structures and flexible mounting positions capability
- Compact structure, small volume to save mounting space;
- Sun and planet gears have spur gear teeth are case-hardened and ground. Annulus gears are mostly quenched and tempered and shaped or ground, depending on size. Bevel gears are case-hardened and, depending on size, lapped, HPG-cut or ground. The gears and gear shafts of the primary gear stages have helical teeth and are case hardened and ground. Other materials on request
- High efficiency up to 98%per stage, low noise and temperature, and high precision grade up to 6 or better of ISO1328;
- Gears are all grinded and internal gear ring through nitriding process, gearbox housing through aging treatment then annealing to relieve stress twice, therefore the bearing capacity very high;
- Best China bearings used, may?use other bearings like SKF, NSK and FAG, and double-lip oil seal make sure no oil leak;
- Every gearbox 100 percent tested prior to delivery;
2.?Brief?Product?Introduction?&?Its?Picture?Show
The gearboxes can be supplied as motor gearbox units assembled on baseplates for convenience. Electromagnetic brakes, back stops, clutches, couplings and other mechanical devices can be incorporated in the design to give a complete drive unit.
In?order?to?save?energy?and?materials,?we?ask?for?the?high?efficiency?and?miniaturization?to?gear.?
Overloading,?modular,?power?split?and?machine?of?decelerate?of?hard?tooth?surface?technology?is
?the?development?trend.?The?planetary?gear?set?these?features?at?a?suit,?modular?development?has
?made?the?domestic?JB1799-76?and?JB/T6502-93?standard?of?planetary-units?replaced?by?the?Flemish?companies?gradually.?In?order?to?adapt?to?market?demand,?improve
the?market?share?quickly,?we?refer?to?the?Flemish?P?series,?development?modular?planetary?gear?units.?
3.?Company?Profile?&?Workshop?Corner?Show
Changzhou?Mingdi?Machinery?Co.,?Ltd?is?a?professional?transmission?machinery?manufacturer?of
?producing?various?gears,?gear?transmission?and?reducers,?the?hardened-tooth-surface?cylindrical?gearbox?that?is?our?featured?product?is?widely?used?in?four?fields,?among?which
?are?electrical?machinery,?plastic?extrusion?machinery,?railway?engin
