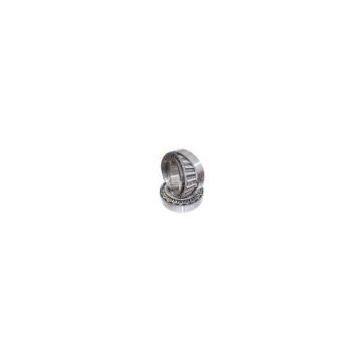

Single row tapered roller bearing

Single row tapered roller bearing has an outer ring, its inner ring and a set of tapered roller by a basket-shaped cage into an inner component inclusive. The outer ring and inner components can be separated, in accordance with ISO tapered roller bearings standard dimensions, any one standard model of tapered roller bearing outer ring or inner components and the same model should be able to outer or inner component to achieve an international exchange. The outer ring of the same model except that the Department of dimensions, tolerances required to comply with ISO492 (GB307) provided, the inner components of the cone angle, cone diameter and other components must also comply with the relevant provisions of the swap.

Typically, single row tapered roller bearing outer ring raceway of the cone angle is 10 ° ~ 19 ° prior to simultaneously withstand bearing loads and radial loads to the combined effects. Cone angle greater the ability to withstand greater axial load. Large cone angle of the bearing, post code plus B, cone angle 25 ° ~ 29 ° between, it can withstand a large axial load. In addition, the single row tapered roller bearings can be adjusted during the installation process the size of the clearance
